Description
General part information

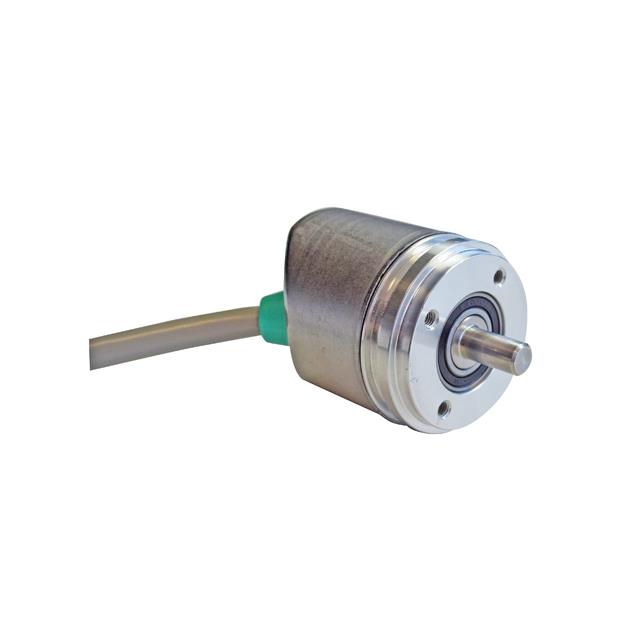

UTD-IPH00-00120-R060-2TW
PROGRAM. INCREMENTAL PPR 1-16384
Technical Specifications
Parameters and characteristics for this part
| Specification | UTD-IPH00-00120-R060-2TW |
|---|---|
| Actuator Diameter | 6 mm |
| Actuator Type | Round End |
| Built in Switch | No |
| Detent | No |
| Encoder Type | Incremental, Magnetic |
| Mounting Type | Flange Mount, Servo Mount |
| Orientation | User Selectable, Right Angle |
| Output Type | Push-Pull, HTL, TTL |
| Pulses per Revolution | Programmable |
| Pulses per Revolution | 120 |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 4.75 V |
