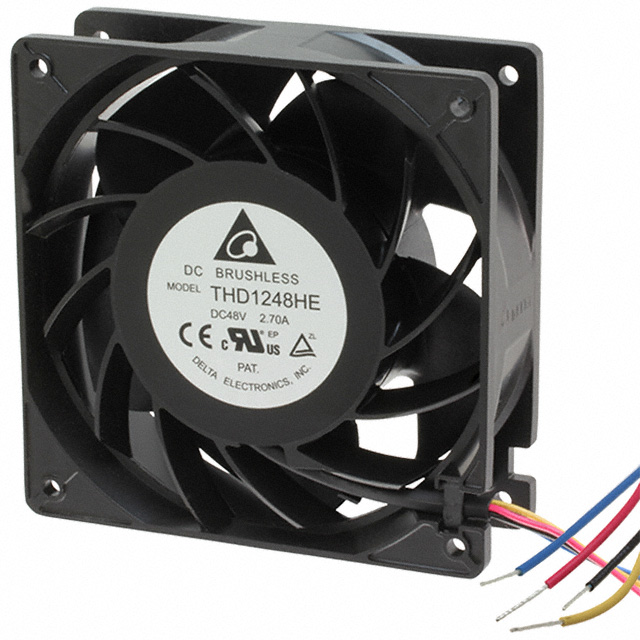

THD1248HE

Obsolete

Delta Electronics

FAN AXIAL 120X38MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 120X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	THD1248HE

Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	2.2 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	78 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	105.82 W
RPM	10900 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	1096 Pa
Static Pressure	4.4 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	59 VDC
Voltage Range [Min]	32 VDC
Weight	499 g
Weight	1.1 lbs
Width [y]	38 mm

FAN AXIAL 120X38MM 48VDC WIRE

Part	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Features	Fan Type	Static Pressure	Static Pressure	Voltage - Rated [custom]	RPM	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Width [y]	Current Rating (Amps)	Material - Frame	Material - Blade	Bearing Type	Termination	Power (Watts)
Delta Electronics THD1248HE	CE, cURus, TUV	120 mm	120 mm	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Tubeaxial	1096 Pa	4.4 in H2O	48 VDC	10900 RPM	78 dB(A)	70 °C	70 °C	-10 °C	-10 °C	499 g	1.1 lbs	70000 Hrs	32 VDC	59 VDC	38 mm	2.2 A	Aluminum	Plastic	Ball	4 Wire Leads	105.82 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 287.0 CFM (8.03m³/min) 4 Wire Leads
