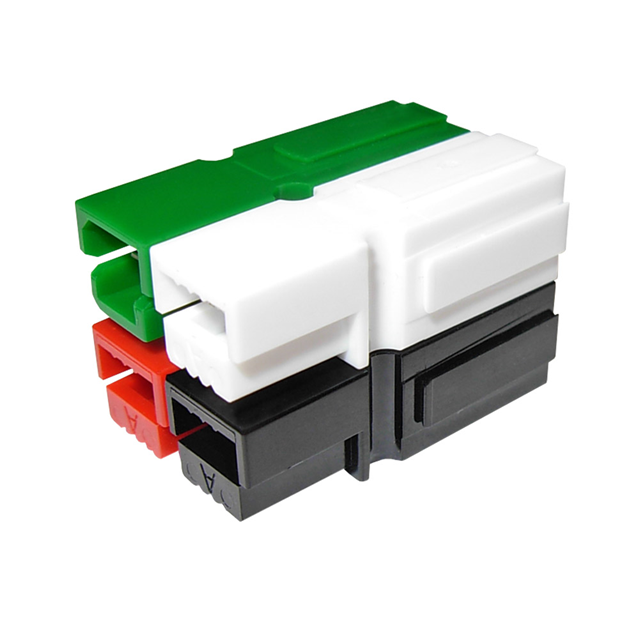

ASMFP30-2X2-EWRK

Active

Anderson Power Products, Inc.

PP15/45 TWO ROW 2X2 ASSEMBLY BONDED ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

PP15/45 TWO ROW 2X2 ASSEMBLY BONDED ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

PP15/45 TWO ROW 2X2 ASSEMBLY BONDED ROHS COMPLIANT: YES

Part	Number of Positions	Mounting Type	Fastening Type	Note	Voltage Rating	Current Rating (Amps)	Contact Type	Color	Stacking Direction	Number of Rows	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination
Anderson Power Products, Inc. ASMFP30-2X2-EWRK	4	Free Hanging (In-Line)	Spring Retention	Contacts Not Included	600 V	55 A	Non-Gendered	Black, Green, Red, White	Top to Bottom and Side to Side	2	Stackable	-20 C	105 ░C	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Blade Type Power Housing Connector Non-Gendered, Self Mating Black, Green, Red, White
