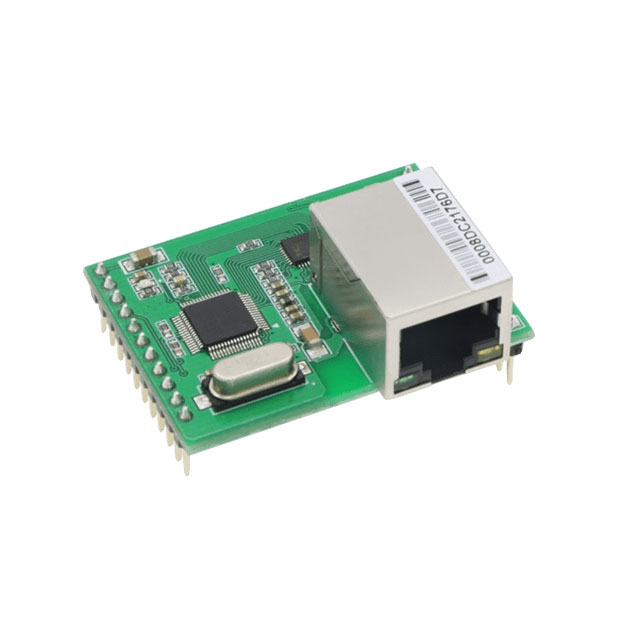

W7500S2E-R1
ActiveWIZnet
BRIDGE ETHR 10/100 BASE-T/TX PHY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W7500S2E-R1
ActiveWIZnet
BRIDGE ETHR 10/100 BASE-T/TX PHY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | W7500S2E-R1 | W7500 Series |
|---|---|---|
| Connectivity | - | UART/USART, Ethernet/TCP/IP, I2C, SSP, Microwire, IrDA, SPI, SSI |
| Core Processor | - | ARM® Cortex®-M0 |
| Core Size | - | 32-Bit Single-Core |
| Current - Supply | 106 mA | 106 mA |
| Data Converters | - | 9 - 12 b |
| Data Converters | - | 12 b |
| Data Converters | - | 8 |
| EEPROM Size | - | 6 K |
| Function | Bridge, RS232 to TCP/IP | Bridge, RS232 to TCP/IP |
| Interface | Serial | Serial |
| Mounting Type | - | Surface Mount |
| Number of I/O | - | 34 - 53 |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |
| Oscillator Type | - | External, Internal |
| Package / Case | Module | Module, 64-LQFP |
| Peripherals | - | WDT, DMA, PWM, POR |
| Program Memory Size | - | 128 KB |
| Program Memory Type | - | FLASH |
| Protocol | Ethernet | Ethernet |
| RAM Size | - | 16 K |
| Speed | - | 48 MHz |
| Standards | 10/100 Base-T/TX PHY | 10/100 Base-T/TX PHY |
| Supplier Device Package | Module | Module, 64-TQFP (7x7) |
| Voltage - Supply (Vcc/Vdd) | - | 2.7 V |
| Voltage - Supply (Vcc/Vdd) | - | 3.6 - 5.5 V |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 2.97 V | 2.97 V |
W7500 Series
BRIDGE ETHR 10/100 BASE-T/TX PHY
| Part | Function | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Current - Supply | Voltage - Supply [Max] | Voltage - Supply [Min] | Interface | Protocol | Package / Case | Standards | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | EEPROM Size | Core Size | Data Converters | Mounting Type | Peripherals | Program Memory Type | Connectivity | Oscillator Type | Speed | RAM Size | Program Memory Size | Core Processor | Number of I/O | Data Converters [custom] | Data Converters [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WIZnet W7500S2E-R1 | Bridge, RS232 to TCP/IP | Module | 85 °C | -40 °C | 106 mA | 3.6 V | 2.97 V | Serial | Ethernet | Module | 10/100 Base-T/TX PHY | |||||||||||||||||
WIZnet W7500P-S2E | 64-TQFP (7x7) | 70 °C | 0 °C | 64-LQFP | 2.7 V | 5.5 V | 6 K | 32-Bit Single-Core | 9, 12 b | Surface Mount | DMA, POR, PWM, WDT | FLASH | Ethernet/TCP/IP, I2C, SSP, UART/USART | External, Internal | 48 MHz | 16 K | 128 KB | ARM® Cortex®-M0 | 34 | |||||||||
WIZnet W7500-S2E | 64-TQFP (7x7) | 70 °C | 0 °C | 64-LQFP | 2.7 V | 5.5 V | 32-Bit Single-Core | Surface Mount | DMA, POR, PWM, WDT | FLASH | Ethernet/TCP/IP, I2C, IrDA, Microwire, SPI, SSI, SSP, UART/USART | Internal | 48 MHz | 16 K | 128 KB | ARM® Cortex®-M0 | 53 | 12 b | 8 | |||||||||
WIZnet W7500P | 64-TQFP (7x7) | 70 °C | 0 °C | 64-LQFP | 2.7 V | 3.6 V | 32-Bit Single-Core | 9, 12 b | Surface Mount | DMA, POR, PWM, WDT | FLASH | Ethernet/TCP/IP, I2C, SSP, UART/USART | External, Internal | 48 MHz | 16 K | 128 KB | ARM® Cortex®-M0 | 34 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 22.11 | |
| 10 | $ 16.18 | |||
| 25 | $ 14.65 | |||
| 80 | $ 13.19 | |||
| 230 | $ 12.20 | |||
| 440 | $ 11.88 | |||
Description
General part information
W7500 Series
Ethernet Bridge, RS232 to TCP/IP 10/100 Base-T/TX PHY Serial Interface Module
