FKDMIDK

Active

TAOGLAS

DUAL FAKRA CODE I SMB(M)ST_ FOR

Search across all available documentation for this part.

Active

TAOGLAS

DUAL FAKRA CODE I SMB(M)ST_ FOR

Technical Specifications

Parameters and characteristics commom to parts in this series

DUAL FAKRA CODE I SMB(M)ST_ FOR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Ports	Shield Termination	Connector Type	Contact Termination	Impedance	Fastening Type	Features	Cable Group	Frequency - Max [Max]	Mating Cycles	Connector Style	Housing Color
TAOGLAS FKDMIDK	-40 °C	105 ░C	Free Hanging (In-Line)	2	Crimp	Male Pin, Plug	Crimp	50 Ohms	Locking Ramp	Code I	316, RG-174	6000 MHz	25	Fakra, SMB	Beige
TAOGLAS FKDMIPCB
TAOGLAS FKDMIG	-40 °C	105 ░C	Free Hanging (In-Line)	2	Crimp	Male Pin, Plug	Crimp	50 Ohms	Locking Ramp	Code I	316, RG-174	6000 MHz	25	Fakra, SMB	Beige

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

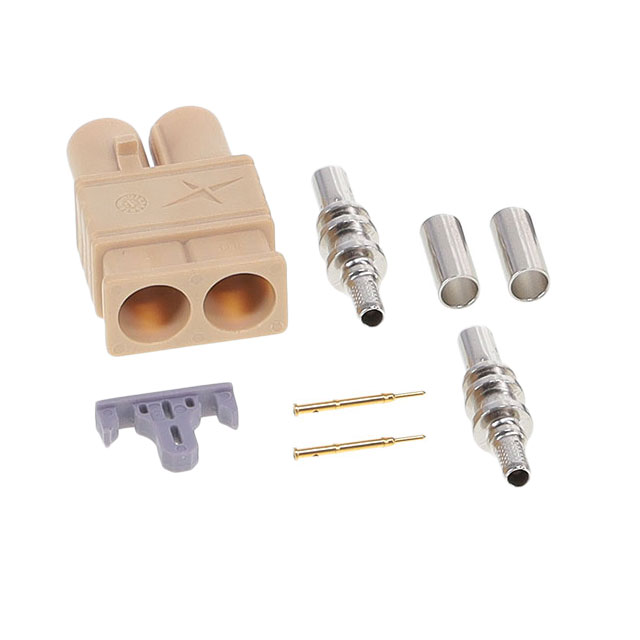

SMB, Fakra Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
