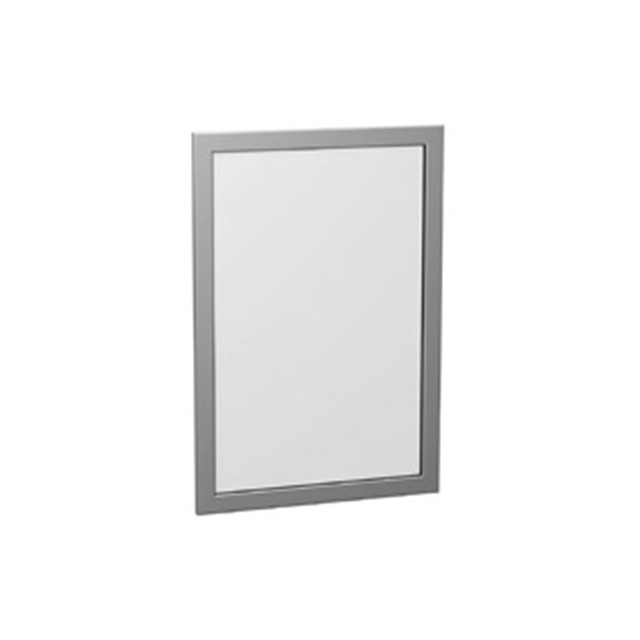

1481WN4SS1711

Active

Hammond Manufacturing

WINDOW NEMA4 STEEL 18.7X12.7"

Search across all available documentation for this part.

Active

Hammond Manufacturing

WINDOW NEMA4 STEEL 18.7X12.7"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1481WN4SS1711	1481 Series

Accessory Type	-	Floor Stand Kit, Hardware Kit, Hinged Brackets
Color	Natural	Gray, Natural, Clear
Features	-	Vented, Hardware Kit, Mounting Feet, Adhesive, Medium Duty, Heavy Duty
For Use With/Related Products	Enclosures	Enclosures, Equipment Cabinets, NEMA 12 Enclosures, 1487 Series, 1414, 1485, 1486, 1447SN4SS Series, 1447SN4, 1418N4, 1418N4SS
Material	-	Metal, Steel, Plastic, Polycarbonate
Size / Dimension	-	160.27 - 627.13 mm
Size / Dimension	-	266.7 mm
Size / Dimension	-	10.5 in
Size / Dimension	-	268.22 mm
Size / Dimension	-	10.56 in
Size / Dimension	-	6.35 mm
Size / Dimension [x]	474.73 mm	134.87 - 931.93 mm
Size / Dimension [x]	18.69 "	5.31 - 36.69 "
Size / Dimension [y]	12.69 in	3 - 24.69 "
Size / Dimension [y]	322.33 mm	76.2 - 525.53 mm
Size / Dimension [z]	6.35 mm	6.35 - 69.85 mm
Size / Dimension [z]	0.25 "	0.25 - 2.75 in
Type	Window Kit	Window Kit, Panel, Side, Stabilizers, Instrumentation
Ventilation	-	Vented, Non-Vented
Weight	-	1.1 - 453.59 g
Weight	-	1 - 30 lbs

WINDOW DEEP HINGED 22.19X16.14"

...

Part	Color	Material	For Use With/Related Products	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Features	Size / Dimension [y]	Accessory Type	Weight	Weight	Ventilation
Hammond Manufacturing 1481WDH2420	Gray	Metal, Steel	Enclosures	Window Kit	16.14 "	22.19 "	409.96 mm	69.85 mm	563.63 mm	2.75 in
Hammond Manufacturing 1481WN4SS2919	Natural		Enclosures	Window Kit	20.69 "	30.69 "	525.53 mm	6.35 mm	779.53 mm	0.25 "
Hammond Manufacturing 1481L3R1510GY	Gray	Metal, Steel	Enclosures	Panel, Side	10.31 in	16.12 in	261.87 mm		404.61 mm		Vented
Hammond Manufacturing 1481WSSDH2420	Natural		Enclosures	Window Kit	16.14 "	22.19 "	409.96 mm	69.85 mm	563.63 mm	2.75 in
Hammond Manufacturing 1481L3R66SS	Natural		Enclosures	Panel, Side	6.31 "	6.43 "			163.32 mm		Vented	160.27 mm
Hammond Manufacturing 1481WDH1612	Gray	Metal, Steel	Enclosures	Window Kit	8.14 "	14.19 "	206.76 mm	69.85 mm	360.43 mm	2.75 in
Hammond Manufacturing 1481FC18K			Equipment Cabinets								Hardware Kit, Mounting Feet		Floor Stand Kit
Hammond Manufacturing 1481FK6K			Equipment Cabinets								Hardware Kit, Mounting Feet		Floor Stand Kit
Hammond Manufacturing 1481L44	Gray		Enclosures	Panel, Side	5.62 "	5.5 in	142.75 mm		139.7 mm					453.59 g	1 lbs	Vented
Hammond Manufacturing 1481WFL133	Clear	Plastic, Polycarbonate	Enclosures	Window Kit	3.88 in	13.88 in	98.55 mm	6.35 mm	352.55 mm	0.25 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Metal, Stainless Steel Window Kit 18.690" L x 12.690" W x 0.250" H (474.73mm x 322.33mm x 6.35mm) Natural
