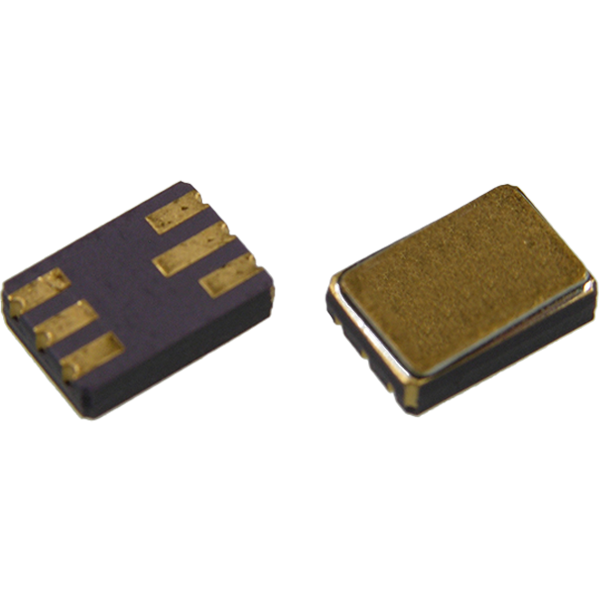

2N4854U
ActiveTT Electronics/BI
TRANS NPN/PNP 40V 600MA 6-CLCC
2N4854U
ActiveTT Electronics/BI
TRANS NPN/PNP 40V 600MA 6-CLCC
Description
General part information
2N4854U
TRANS NPN/PNP 40V 600MA 6-CLCC
Technical Specifications
Parameters and characteristics for this part
| Specification | 2N4854U |
|---|---|
| Current - Collector (Ic) (Max) | 0.6 mA |
| Current - Collector Cutoff (Max) | 0.01 µA |
| DC Current Gain (hFE) (Min) | 100 |
| Mounting Type | Surface Mount |
| NPN Count | 1 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | 6-CLCC |
| Package Name | 6-CLCC |
| PNP Count | 1 |
| Power - Max | 0.6 W |
| Transistor Type | PNP, NPN |
| Vce Saturation (Max) | 400 mV, 400 mV |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
