UM3202H

Active

Union Semiconductor International Limited

IC TRANSLTR BIDIRECTIONAL 8CSP

Search across all available documentation for this part.

Active

Union Semiconductor International Limited

IC TRANSLTR BIDIRECTIONAL 8CSP

Technical Specifications

Parameters and characteristics for this part

IC TRANSLTR BIDIRECTIONAL 8CSP

Part	Mounting Type	Voltage - VCCA [Min]	Voltage - VCCA [Max]	Channel Type	Translator Type	Data Rate	Output Type	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Package / Case	Voltage - VCCB [Min]	Voltage - VCCB [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Channels per Circuit
Union Semiconductor International Limited UM3202H	Surface Mount	1.65 V	3.6 V	Bidirectional	Voltage Level	24 Mbps	Open Drain, Push-Pull	0.9	1.9	8-CSP	8-WFBGA, CSPBGA	2.3 V	5.5 V	85 °C	-40 °C	1	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

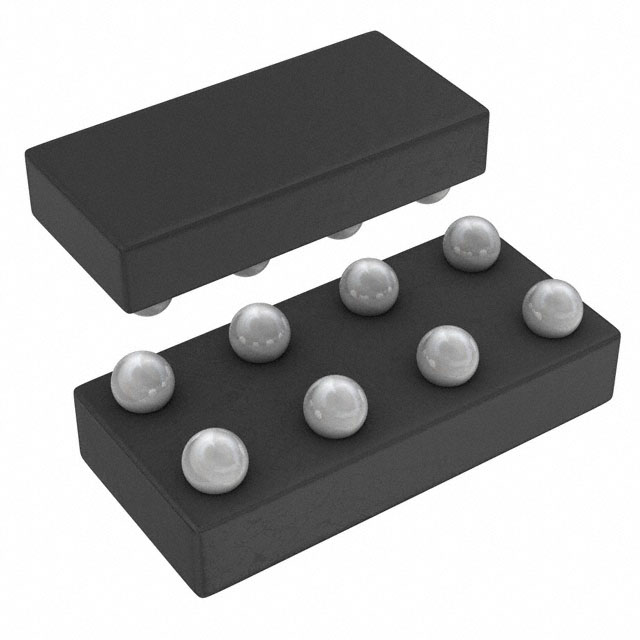

Voltage Level Translator Bidirectional 1 Circuit 2 Channel 24Mbps 8-CSP (1.9x0.9)
