PP021-2
ObsoleteTeledyne LeCroy
OSCOPE PROBE X10 500MHZ 10M 2PK
PP021-2
ObsoleteTeledyne LeCroy
OSCOPE PROBE X10 500MHZ 10M 2PK
Description
General part information
PP021-2

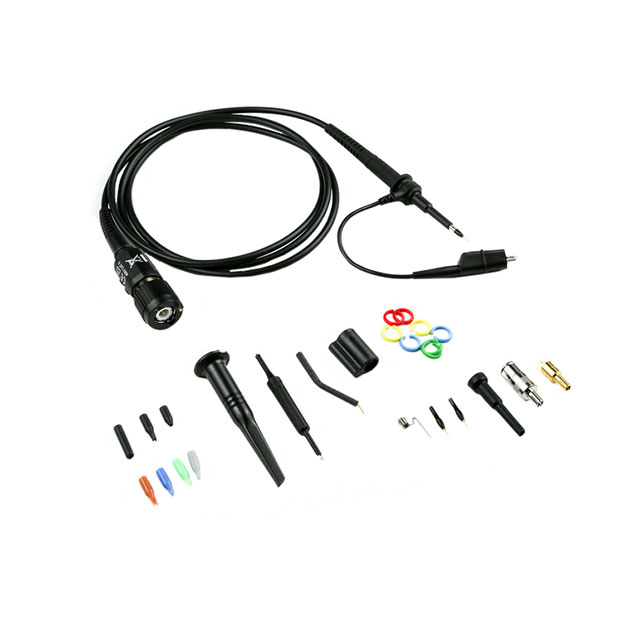

10:1 Passive 500MHz 51.181" (1300.00mm) Black Oscilloscope Probe Test Lead 10M Input Resistance CAT I 500V, CAT II 400V
Technical Specifications
Parameters and characteristics for this part
| Specification | PP021-2 |
|---|---|
| Attenuation Value | 10 :1 |
| Bandwidth | 500 MHz |
| Cable Length | 51.181 in |
| Capacitance - Input | 11 pF |
| Color | Black |
| Includes | Ground Leads, Trimmer Tool, Coded Rings, Sprung Hook, Adapter, Tips |
| Resistance - Input | 10 MOhm |
| Type | Passive |
| Voltage - Max (CAT I) | 500 V |
| Voltage - Max (CAT II) | 400 V |
| Voltage - Max Category | CAT I, CAT II |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
