1000615-A
ObsoleteKYOCERA AVX

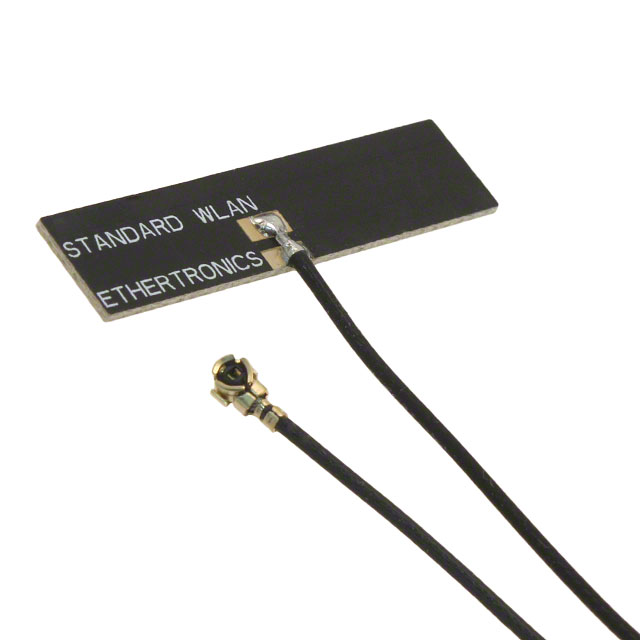

RF ANT 2.4GHZ/4.9GHZ PCB TRACE
1000615-A
ObsoleteKYOCERA AVX
RF ANT 2.4GHZ/4.9GHZ PCB TRACE
Description
General part information
1000615-A
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ PCB Trace Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | 1000615-A |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Wi-Fi, Zigbee™, WLAN, Bluetooth |
| Features | Cable, 100mm |
| Frequency (Center/Band) | 5.8GHz, 4.9GHz, 5.2GHz, 2.4GHz |
| Frequency (Center/Band) - 1 | 2.4 GHz |
| Frequency (Center/Band) - 2 | 4.9 GHz |
| Frequency (Center/Band) - 3 | 5.2 GHz |
| Frequency (Center/Band) - 4 | 5.8 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Band 1) Maximum | 2.49 GHz |
| Frequency Range (Band 1) Minimum | 2.39 GHz |
| Frequency Range (Band 2) Maximum | 5.35 GHz |
| Frequency Range (Band 2) Minimum | 4.9 GHz |
| Frequency Range (Band 3) Maximum | 5.9 GHz |
| Frequency Range (Band 3) Minimum | 5.7 GHz |
| Gain | 5 dBi, 2.5 dBi |
| Height (Max) | 0.033 in |
| Mounting Type | Adhesive |
| Number of Bands | 4 |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| VSWR | 2, 2.5 |
