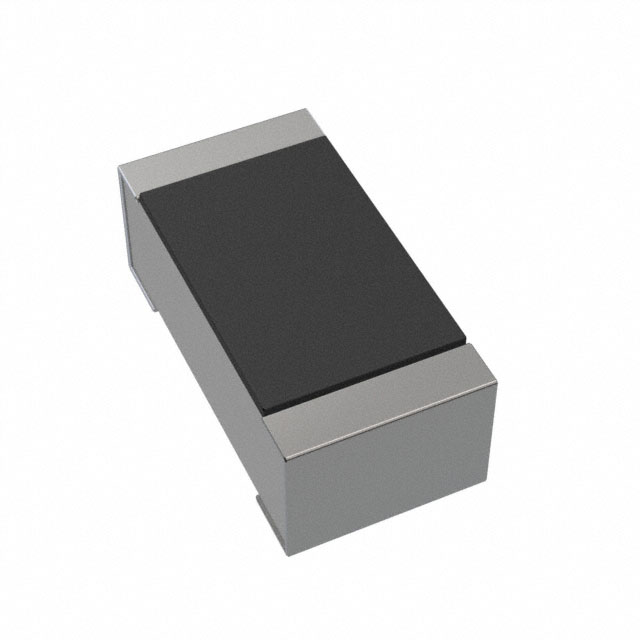

CML0306-18N-HNH
ObsoleteDelta Electronics/Cyntec
FIXED IND 18NH 160MA 1.7 OHM SMD
CML0306-18N-HNH
ObsoleteDelta Electronics/Cyntec
FIXED IND 18NH 160MA 1.7 OHM SMD
Description
General part information
CML0306-18N-HNH
18 nH Shielded Thin Film Inductor 160 mA 1.7Ohm Max 0201 (0603 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CML0306-18N-HNH |
|---|---|
| Current Rating | 160 mA |
| DC Resistance (DCR) (Max) | 1.7 Ohm |
| Frequency - Self Resonant | 3.1 GHz |
| Height - Seated (Max) | 0.013 in |
| Inductance | 18 nH |
| Inductance Frequency - Test | 100 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0201 (0603 Metric) |
| Package Name | 0201 |
| Q | 4 |
| Shielding | Shielded |
| Size / Dimension Length | 0.024 in |
| Size / Dimension Width | 0.012 in |
| Tolerance | 3 % |
| Type | Thin Film |
