VLP4612T-1R8M1R3
ObsoleteTDK Corporation
FIXED IND 1.8UH 1.3A 140MOHM SMD
VLP4612T-1R8M1R3
ObsoleteTDK Corporation
FIXED IND 1.8UH 1.3A 140MOHM SMD
Description
General part information
VLP4612T-1R8M1R3

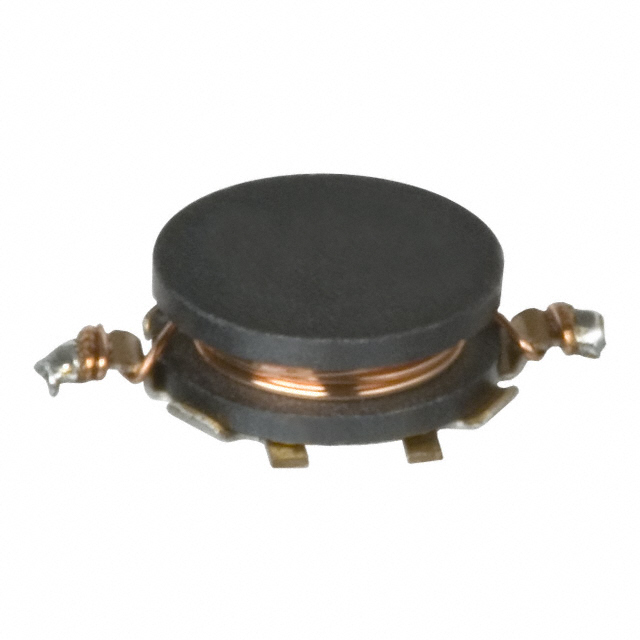

1.8 µH Unshielded Wirewound Inductor 1.3 A 140mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | VLP4612T-1R8M1R3 |
|---|---|
| Current - Saturation (Isat) | 1.7 A |
| Current Rating | 1.3 A |
| DC Resistance (DCR) (Max) | 140 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 1.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.181 in |
| Size / Dimension Width | 0.118 in |
| Tolerance | 20 % |
| Type | Wirewound |
