10140-6000EC
Active3M

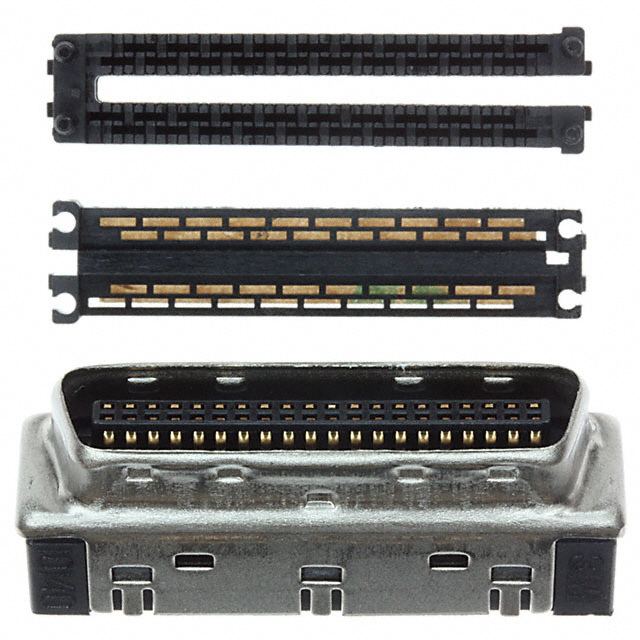

D SUB CONNECTOR, 40 CONTACTS, PLUG, IDC / IDT, MDR 101 SERIES, STEEL BODY
Deep-Dive with AI
Search across all available documentation for this part.
10140-6000EC
Active3M
D SUB CONNECTOR, 40 CONTACTS, PLUG, IDC / IDT, MDR 101 SERIES, STEEL BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10140-6000EC | 10140 Series |
|---|---|---|
| - | - | |
| Connector Style | Center Strip Contacts | Center Strip Contacts |
| Connector Type | Plug | Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.51 - 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 20 - 30 Áin |
| Features | Shielded | Shielded |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 40 | 40 |
| Number of Rows | 2 | 2 |
| Termination | IDC | IDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
10140 Series
D SUB CONNECTOR, 40 CONTACTS, PLUG, IDC / IDT, MDR 101 SERIES, STEEL BODY
| Part | Number of Rows | Contact Finish | Features | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Termination | Connector Type | Number of Positions | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|
2 | Gold | Shielded | 0.76 Ám | 30 Áin | Center Strip Contacts | IDC | Plug | 40 | Free Hanging (In-Line) | |
2 | Gold | Shielded | 0.51 µm | 20 µin | Center Strip Contacts | Plug | 40 | Free Hanging (In-Line) |
Description
General part information
10140 Series
The 101 series 0.05-inch Mini D Ribbon (MDR) Connector with IDC wire-mount shielded plug. It has beryllium copper contact with 30-micro-inch minimum gold wiping area and nickel under-plate plating.
