BV030-7258.0
ObsoletePulse Electronics

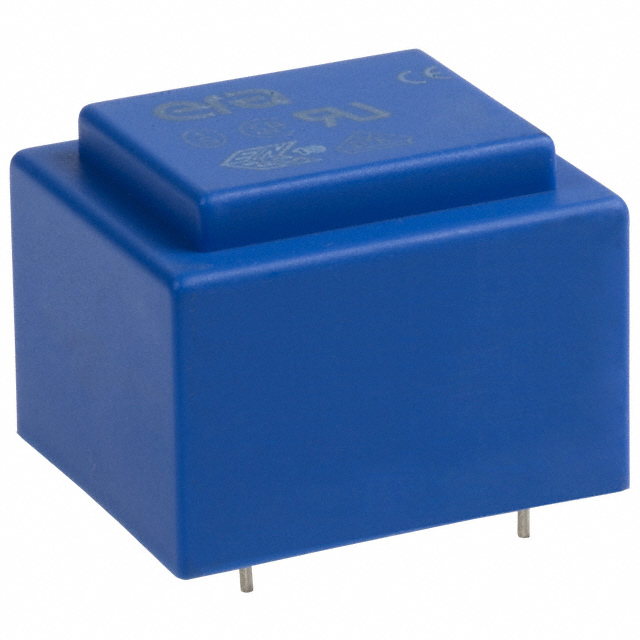

PWR XFMR LAMINATED 1.2VA TH
BV030-7258.0
ObsoletePulse Electronics
PWR XFMR LAMINATED 1.2VA TH
Description
General part information
BV030-7258.0
PWR XFMR LAMINATED 1.2VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | BV030-7258.0 |
|---|---|
| Center Tap | No |
| Current - Output (Max) | 100 mA |
| Height - Seated (Max) | 24 mm |
| Mounting Type | Through Hole |
| Power - Max | 1.2 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 32.5 mm |
| Size / Dimension Width | 27.5 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 12 V |
| Weight | 0.133 lb |
