BA-2RQ1

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION N.O./N.C. SPDT HIGH OVERTRAVEL PLUNGER 20A 480VAC 250VDC 1491.4VA 6.12N PANEL MOUNT QUICK CONNECT

Find alt

Alpha

BA-2RQ1

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION N.O./N.C. SPDT HIGH OVERTRAVEL PLUNGER 20A 480VAC 250VDC 1491.4VA 6.12N PANEL MOUNT QUICK CONNECT

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

BA-2 Series

The BA series MICRO SWITCH™ Snap-action Switch for precision on/off applications, irrigation systems, semi-trailer trucks, timing devices, office equipment, manually operated devices and valves.

Technical Specifications

Parameters and characteristics for this part

Specification	BA-2RQ1

Actuator Type	Overtravel Plunger
Circuit	SPDT
Current Rating	0.5 A, 20 A
Differential Travel (Linear)	0.002 in
Mechanical Life (Cycles)	20000000 Cycles
Mounting Type	Panel Mount
Operating Force (Max)	624 gf
Operating Force (Min)	397 gf
Operating Position (Length)	0.859 in
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Overtravel (Linear)	0.219 in
Pretravel (Length)	0.05 in
Release Force	283 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	125 V

BA-2 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Switch Function	Operating Position (Length)	Overtravel (Linear)	Mechanical Life (Cycles)	Current Rating	Differential Travel (Linear)	Actuator Type	Voltage Rating - AC	Pretravel (Length)	Voltage Rating - DC	Operating Force	Circuit	Release Force	Mounting Type	Operating Force (Min)	Operating Force (Max)
Honeywell Sensing and Productivity Solutions BA-2RVT	-55 °C	85 °C	Screw Terminal	On-Mom	0.75 in	0.077 in	20000000 Cycles	0.5 A 20 A	0.11 in	Lever Straight	125 V	0.63 in	125 V	71 gf	SPDT	15 gf	Chassis Mount
Honeywell Sensing and Productivity Solutions BA-2R708-P7	-55 °C	85 °C	Screw Terminal	On-Mom	0.64 in	0.01 in	20000000 Cycles	0.5 A 20 A	0.002 in	Round (Pin Plunger)	125 V	0.05 in	125 V		SPDT	283 gf	Chassis Mount	397 gf	624 gf
Honeywell Sensing and Productivity Solutions BA-2RV2223-A2	-55 °C	85 °C	Screw Terminal	On-Mom	1.176 in	0.03 in	20000000 Cycles	0.5 A 20 A	0.045 in	Lever Roller	125 V		125 V	227 gf	SPDT	43 gf	Chassis Mount
Honeywell Sensing and Productivity Solutions BA-2RT	-55 °C	85 °C	Screw Terminal	On-Mom	0.64 in	0.01 in	20000000 Cycles	0.5 A 20 A	0.002 in	Round (Pin Plunger)	125 V	0.05 in	125 V		SPDT	283 gf	Chassis Mount	397 gf	624 gf
Honeywell Sensing and Productivity Solutions BA-2SBT	-55 °C	85 °C	Screw Terminal	On-Mom	1.03 in	0.094 in	20000000 Cycles	0.5 A 20 A	0.004 in	Overtravel Plunger	125 V	0.05 in	125 V		SPDT (DB/DM)	283 gf	Chassis Mount	624 gf	850 gf
Honeywell Sensing and Productivity Solutions BA-2RV336-A2	-55 °C	85 °C	Screw Terminal	On-Mom	0.75 in	0.1 in	20000000 Cycles	0.5 A 20 A	0.045 in	Lever Straight	125 V	0.47 in	125 V		SPDT	28 gf	Chassis Mount	42 gf	71 gf

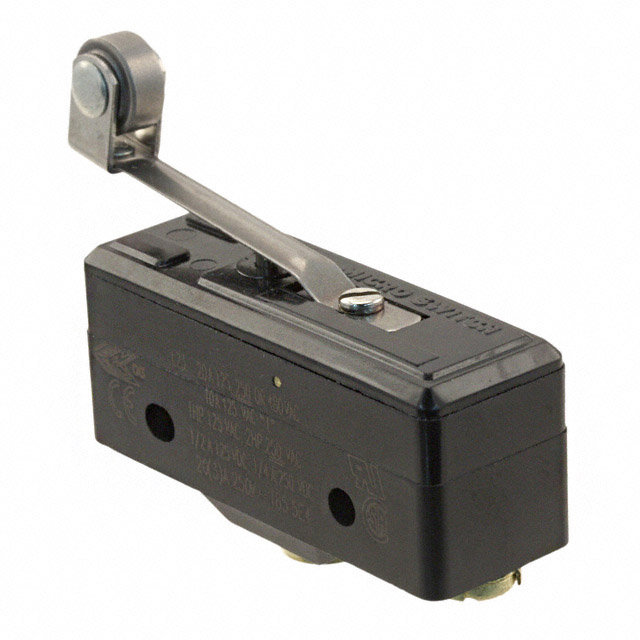

Honeywell Sensing and Productivity Solutions BA-2RL2-A2	-55 °C	85 °C	Screw Terminal	On-Mom	1.125 in	0.06 in	20000000 Cycles	0.5 A 20 A	0.065 in	Lever Roller	125 V		125 V	255 gf	SPDT	28 gf	Chassis Mount
Honeywell Sensing and Productivity Solutions BA-2R-A4	-55 °C	85 °C	Screw Terminal	On-Mom	0.64 in	0.01 in	20000000 Cycles	0.5 A 20 A	0.002 in	Round (Pin Plunger)	125 V	0.05 in	125 V		SPDT	283 gf	Chassis Mount	397 gf	624 gf
Honeywell Sensing and Productivity Solutions BA-2RV2-A2	-55 °C	85 °C	Screw Terminal	On-Mom	1.188 in	0.06 in	20000000 Cycles	0.5 A 20 A	0.085 in	Lever Roller	125 V	0.47 in	125 V	99 gf	SPDT	15 gf	Chassis Mount
Honeywell Sensing and Productivity Solutions BA-2RV2233T	-55 °C	85 °C	Screw Terminal	On-Mom	1.176 in	0.03 in	20000000 Cycles	0.5 A 20 A	0.045 in	Lever Roller	125 V	0.25 in	125 V	170 gf	SPDT	43 gf	Chassis Mount
