MAXQ3120-FFN+
ActiveAnalog Devices Inc./Maxim Integrated

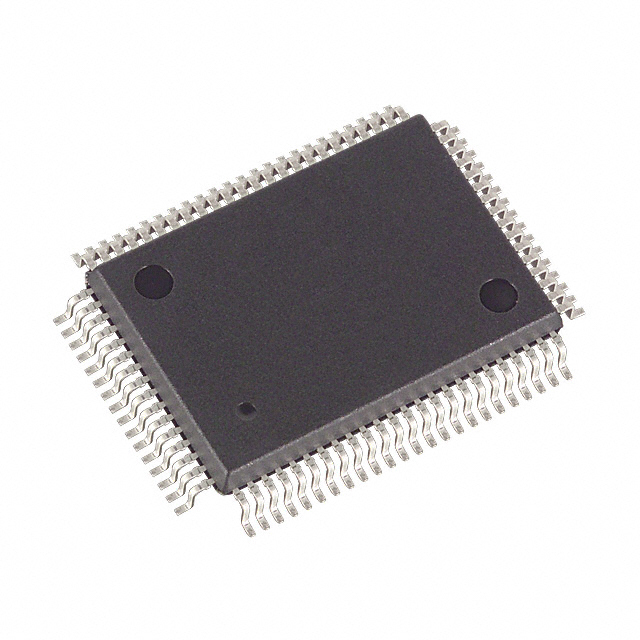

IC MCU 16BIT 32KB FLASH 80QFP
Deep-Dive with AI
Search across all available documentation for this part.
MAXQ3120-FFN+
ActiveAnalog Devices Inc./Maxim Integrated
IC MCU 16BIT 32KB FLASH 80QFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MAXQ3120-FFN+ |
|---|---|
| Connectivity | UART/USART |
| Core Size | 16-Bit |
| Data Converters | A/D 2x16b |
| Mounting Type | Surface Mount |
| Number of I/O | 32 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 80-BQFP |
| Peripherals | LCD, POR, PWM, WDT |
| Program Memory Size | 32 KB |
| Program Memory Type | FLASH |
| RAM Size | 512 |
| Speed | 8 MHz |
| Supplier Device Package | 80-MQFP (14x20) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MAXQ3120 Series
IC MCU 16BIT 32KB FLASH 80QFP
| Part | Number of I/O | RAM Size | Operating Temperature [Max] | Operating Temperature [Min] | Program Memory Size | Oscillator Type | Data Converters | Connectivity | Speed | Package / Case | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Supplier Device Package | Core Size | Mounting Type | Program Memory Type | Peripherals |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXQ3120-FFN+ | 32 | 512 | 85 °C | -40 °C | 32 KB | Internal | A/D 2x16b | UART/USART | 8 MHz | 80-BQFP | 2.8 V | 3.6 V | 80-MQFP (14x20) | 16-Bit | Surface Mount | FLASH | LCD, POR, PWM, WDT |
Description
General part information
MAXQ3120 Series
MAXQ® Microcontroller IC 16-Bit 8MHz 32KB (16K x 16) FLASH 80-MQFP (14x20)
