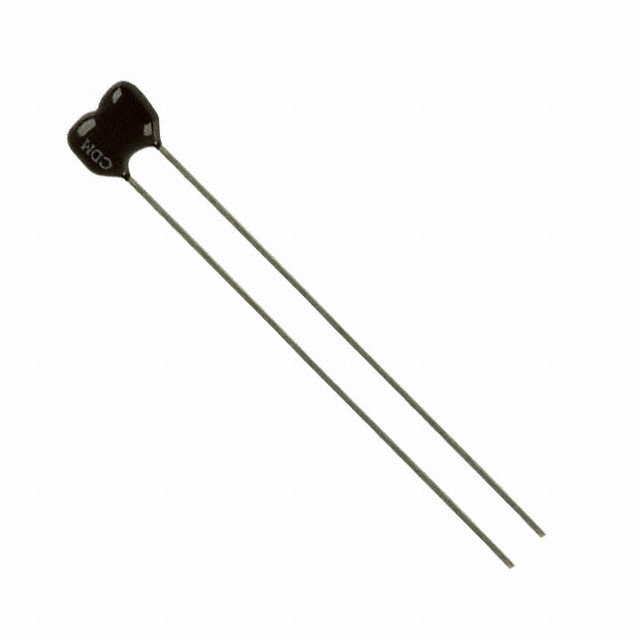

CD5CC040CO3
ActiveCornell Dubilier Knowles
CAP MICA 4PF 1PF 300V RADIAL
CD5CC040CO3
ActiveCornell Dubilier Knowles
CAP MICA 4PF 1PF 300V RADIAL
Description
General part information
CD5CC040CO3
4 pF Mica Capacitor 300 V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | CD5CC040CO3 |
|---|---|
| Capacitance | 4 pF |
| Dielectric Material | Mica |
| Features | General Purpose |
| Height - Seated (Max) | 0.189 in |
| Lead Spacing | 0.118 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.272 in |
| Size / Dimension Width | 0.11 in |
| Tolerance | 1 pF |
| Voltage - Rated | 300 VAC |
