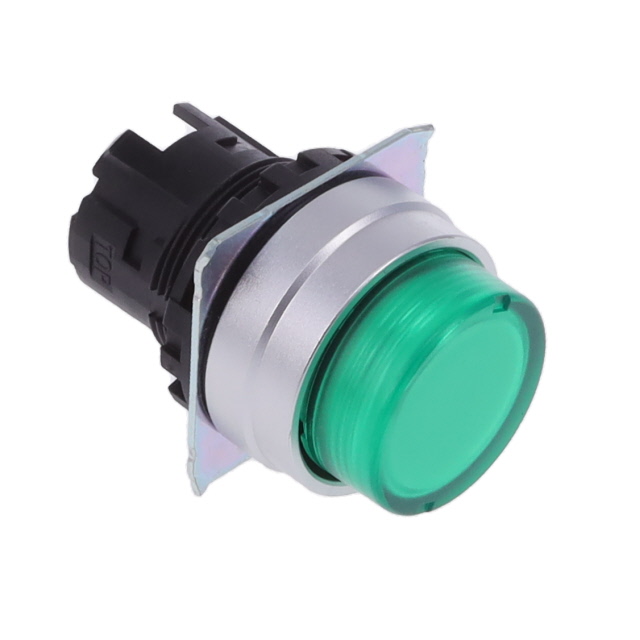

Specification	A22NZ-MPM-TGA

Actuator Type	Pushbutton, Round
Compatible Series	Omron, A22NL
Illumination	Green
Panel Cutout Dimension	22.3 mm
Panel Cutout Shape	Round
Requires	Illumination Source, Contact Block(s)
Type	Momentary

A22NZ Series

...

Part	Illumination	Compatible Series	Type	Panel Cutout Dimension	Panel Cutout Shape	Actuator Type	Requires	Color	Voltage (Max)	Voltage (Min)
Omron Automation and Safety A22NZ-RPA-NAA	Non-Illuminated	A22NN Omron	Maintained	22.3 mm	Round	Pushbutton Round	Contact Block(s)
Omron Automation and Safety A22NZ-BNM-TAA	Blue	A22NL Omron	Momentary	22.3 mm	Round	Pushbutton Round	Contact Block(s) Illumination Source
Omron Automation and Safety A22NZ-RMM-UWA	Non-Illuminated	A22NN Omron	Momentary	22.3 mm	Round	Pushbutton Round	Contact Block(s)
Omron Automation and Safety A22NZ-2RL-01BA	Non-Illuminated	A22NK Omron	Momentary	22.3 mm	Round	Keylock	Contact Block(s)
Omron Automation and Safety A22NZ-3ML-TGA	Green	A22NW Omron	Maintained Momentary	22.3 mm	Round	Selector	Contact Block(s) Illumination Source
Omron Automation and Safety A22NZ-L-WE		A22NW Omron	LED					White	240 V	200 V
Omron Automation and Safety A22NZ-BGA-NRA	Non-Illuminated	A22NN Omron	Maintained	22.3 mm	Round	Pushbutton Round	Contact Block(s)
Omron Automation and Safety A22NZ-RMA-NAA	Non-Illuminated	A22NN Omron	Maintained	22.3 mm	Round	Pushbutton Round	Contact Block(s)
Omron Automation and Safety A22NZ-3RR-TOA	Orange	A22NW Omron	Maintained Momentary	22.3 mm	Round	Selector	Contact Block(s) Illumination Source
Omron Automation and Safety A22NZ-BNM-TRA	Red	A22NL Omron	Momentary	22.3 mm	Round	Pushbutton Round	Contact Block(s) Illumination Source
