Description
General part information
PRT-18723

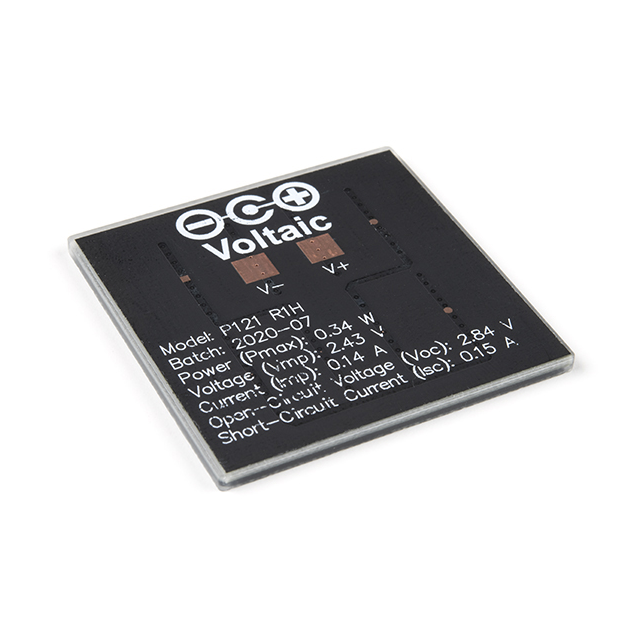

Photovoltaic Solar Cell 330 mW 2.84 V
Technical Specifications
Parameters and characteristics for this part
| Specification | PRT-18723 |
|---|---|
| Current | 130 mA |
| Current - Short Circuit (Isc) | 150 mA |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Cells |
| Power (Watts) - Max | 330 mW |
| Size / Dimension Height | 0.114 in |
| Size / Dimension Length | 2.047 in |
| Size / Dimension Width | 2.047 in |
| Type | Photovoltaic |
| Voltage | 2.43 V |
| Voltage - Open Circuit | 2.84 V |
