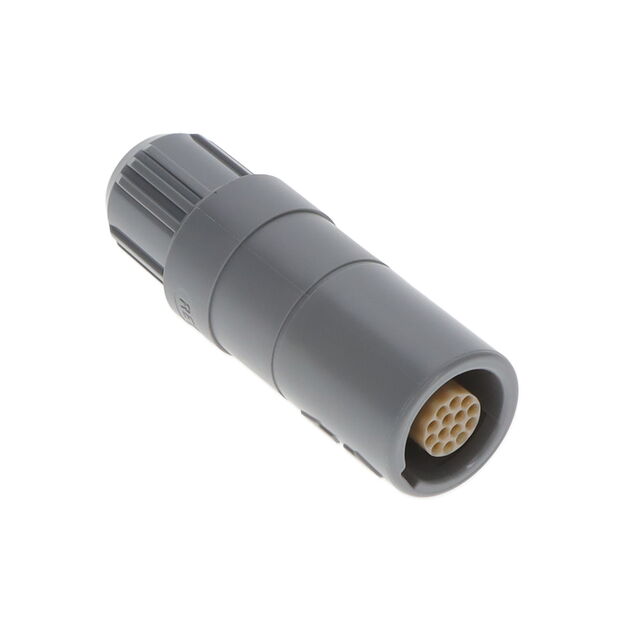

Specification	PRG.M1.4GL.LC65G

Applications	Industrial, Automotive, Testing Equipment & Measurement, Medical
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening (Max)	0.256 in
Cable Opening (Min)	0.209 in
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating	2 A
Fastening Type	Push-Pull, Detent Lock
Features	Backshell
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-50 °C
Orientation	G
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	M14
Shielding	Unshielded
Termination	Solder Cup

PRG.M1 Series

Part	Color	Cable Opening (Max)	Cable Opening (Min)	Connector Type	Termination	Backshell Material, Plating	Applications	Shell Material	Orientation	Mounting Type	Primary Material	Shielding	Current Rating	Shell Size - Insert	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Features	Insert Material	Number of Positions	Contact Finish - Mating
LEMO PRG.M1.4GL.LC39J	Gray Yellow	0.154 in	0.106 in	Female Sockets Receptacle	Solder Cup	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)	G	Free Hanging (In-Line)	Plastic	Unshielded	2 A	M14	-50 °C	150 °C	Detent Lock Push-Pull	Dust Protected	IP50	Backshell	PEEK Polyetheretherketone	14	Gold
LEMO PRG.M1.0GL.LC65Z	Gray	0.256 in	0.209 in	Female Sockets Receptacle	Solder Cup	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)	G	Free Hanging (In-Line)	Plastic	Unshielded	3 A	M10	-50 °C	150 °C	Detent Lock Push-Pull	Dust Protected	IP50	Backshell	PEEK Polyetheretherketone	10	Gold
LEMO PRG.M1.4GL.LC52R	Gray Red	0.205 in	0.157 in	Female Sockets Receptacle	Solder Cup	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)	G	Free Hanging (In-Line)	Plastic	Unshielded	2 A	M14	-50 °C	150 °C	Detent Lock Push-Pull	Dust Protected	IP50	Backshell	PEEK Polyetheretherketone	14	Gold
LEMO PRG.M1.4GL.LC39V	Gray Green	0.154 in	0.106 in	Female Sockets Receptacle	Solder Cup	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)	G	Free Hanging (In-Line)	Plastic	Unshielded	2 A	M14	-50 °C	150 °C	Detent Lock Push-Pull	Dust Protected	IP50	Backshell	PEEK Polyetheretherketone	14	Gold
LEMO PRG.M1.4NL.LC39V	Black Green	0.154 in	0.106 in	Female Sockets Receptacle	Solder Cup	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)	G	Free Hanging (In-Line)	Plastic	Unshielded	2 A	M14	-50 °C	150 °C	Detent Lock Push-Pull	Dust Protected	IP50	Backshell	PEEK Polyetheretherketone	14	Gold
LEMO PRG.M1.0GL.LC65R	Gray Red	0.256 in	0.209 in	Female Sockets Receptacle	Solder Cup	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)	G	Free Hanging (In-Line)	Plastic	Unshielded	3 A	M10	-50 °C	150 °C	Detent Lock Push-Pull	Dust Protected	IP50	Backshell	PEEK Polyetheretherketone	10	Gold
LEMO PRG.M1.0GL.LC52G	Gray	0.205 in	0.157 in	Female Sockets Receptacle	Solder Cup	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)	G	Free Hanging (In-Line)	Plastic	Unshielded	3 A	M10	-50 °C	150 °C	Detent Lock Push-Pull	Dust Protected	IP50	Backshell	PEEK Polyetheretherketone	10	Gold
LEMO PRG.M1.4GL.LC65R	Gray Red	0.256 in	0.209 in	Female Sockets Receptacle	Solder Cup	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)	G	Free Hanging (In-Line)	Plastic	Unshielded	2 A	M14	-50 °C	150 °C	Detent Lock Push-Pull	Dust Protected	IP50	Backshell	PEEK Polyetheretherketone	14	Gold
LEMO PRG.M1.4GL.LC65A	Blue Gray	0.256 in	0.209 in	Female Sockets Receptacle	Solder Cup	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)	G	Free Hanging (In-Line)	Plastic	Unshielded	2 A	M14	-50 °C	150 °C	Detent Lock Push-Pull	Dust Protected	IP50	Backshell	PEEK Polyetheretherketone	14	Gold
LEMO PRG.M1.4GL.LC39N	Black Gray	0.154 in	0.106 in	Female Sockets Receptacle	Solder Cup	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)	G	Free Hanging (In-Line)	Plastic	Unshielded	2 A	M14	-50 °C	150 °C	Detent Lock Push-Pull	Dust Protected	IP50	Backshell	PEEK Polyetheretherketone	14	Gold
