796863-2
ActiveTE Connectivity AMP Connectors

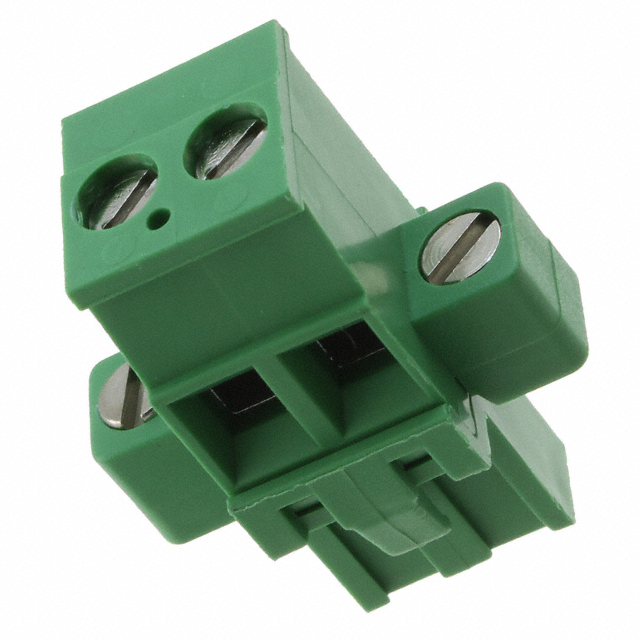

TERM BLOCK PLUG 2POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796863-2
ActiveTE Connectivity AMP Connectors
TERM BLOCK PLUG 2POS 5.08MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796863-2 | 796863 Series |
|---|---|---|
| Color | Green | Green |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Mating Finish | Tin | Tin |
| Features | Retention Latches (Wire Side), Mating Flange | Retention Latches (Wire Side), Mating Flange |
| Insulation Height | 25 mm | 25 mm |
| Insulation Height | 0.984 in | 0.984 in |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Positions | 2 | 2 - 11 |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.2 in | 0.2 in |
| Pitch [x] | 5.08 mm | 5.08 mm |
| Plug Wire Entry | 90 ° | 90 ° |
| Positions Per Level | 2 | 2 - 11 |
| Screw Size | M3 | M3 |
| Termination Style | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Torque - Screw | 0.79 Nm | 0.79 Nm |
| Torque - Screw | 7 Lb-In | 7 Lb-In |
| Type | Plug, Female Sockets | Plug, Female Sockets |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG [Max] | 30 AWG | 30 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG | 12 AWG |
| Wire Strip Length [Max] | 7.5 mm | 7.5 mm |
| Wire Strip Length [Min] | 6 mm | 6 mm |
796863 Series
TERM BLOCK PLUG 7POS 5.08MM
| Part | Contact Mating Finish | Color | Torque - Screw | Torque - Screw | Type | Features | Mounting Type | Number of Levels | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Number of Positions | Wire Strip Length [Max] | Wire Strip Length [Min] | Termination Style | Contact Material | Voltage - UL | Plug Wire Entry | Insulation Height | Insulation Height | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Positions Per Level | Screw Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796863-7 | Tin | Green | 0.79 Nm | 7 Lb-In | Plug, Female Sockets | Mating Flange, Retention Latches (Wire Side) | Free Hanging (In-Line) | 1 | 30 AWG | 12 AWG | 7 | 7.5 mm | 6 mm | Screw - Rising Cage Clamp | Phosphor Bronze | 300 V | 90 ° | 25 mm | 0.984 in | 0.2 in | 5.08 mm | -40 °C | 110 °C | UL94 V-0 | 7 | M3 |
TE Connectivity AMP Connectors 796863-2 | Tin | Green | 0.79 Nm | 7 Lb-In | Plug, Female Sockets | Mating Flange, Retention Latches (Wire Side) | Free Hanging (In-Line) | 1 | 30 AWG | 12 AWG | 2 | 7.5 mm | 6 mm | Screw - Rising Cage Clamp | Phosphor Bronze | 300 V | 90 ° | 25 mm | 0.984 in | 0.2 in | 5.08 mm | -40 °C | 110 °C | UL94 V-0 | 2 | M3 |
TE Connectivity AMP Connectors 1-796863-1 | Tin | Green | 0.79 Nm | 7 Lb-In | Plug, Female Sockets | Mating Flange, Retention Latches (Wire Side) | Free Hanging (In-Line) | 1 | 30 AWG | 12 AWG | 11 | 7.5 mm | 6 mm | Screw - Rising Cage Clamp | Phosphor Bronze | 300 V | 90 ° | 25 mm | 0.984 in | 0.2 in | 5.08 mm | -40 °C | 110 °C | UL94 V-0 | 11 | M3 |
TE Connectivity AMP Connectors 796863-4 | Tin | Green | 0.79 Nm | 7 Lb-In | Plug, Female Sockets | Mating Flange, Retention Latches (Wire Side) | Free Hanging (In-Line) | 1 | 30 AWG | 12 AWG | 4 | 7.5 mm | 6 mm | Screw - Rising Cage Clamp | Phosphor Bronze | 300 V | 90 ° | 25 mm | 0.984 in | 0.2 in | 5.08 mm | -40 °C | 110 °C | UL94 V-0 | 4 | M3 |
TE Connectivity AMP Connectors 796863-5 | Tin | Green | 0.79 Nm | 7 Lb-In | Plug, Female Sockets | Mating Flange, Retention Latches (Wire Side) | Free Hanging (In-Line) | 1 | 30 AWG | 12 AWG | 7.5 mm | 6 mm | Screw - Rising Cage Clamp | Phosphor Bronze | 300 V | 90 ° | 25 mm | 0.984 in | 0.2 in | 5.08 mm | -40 °C | 110 °C | UL94 V-0 | 5 | M3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1200 | $ 2.56 | |
Description
General part information
796863 Series
2 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line)
