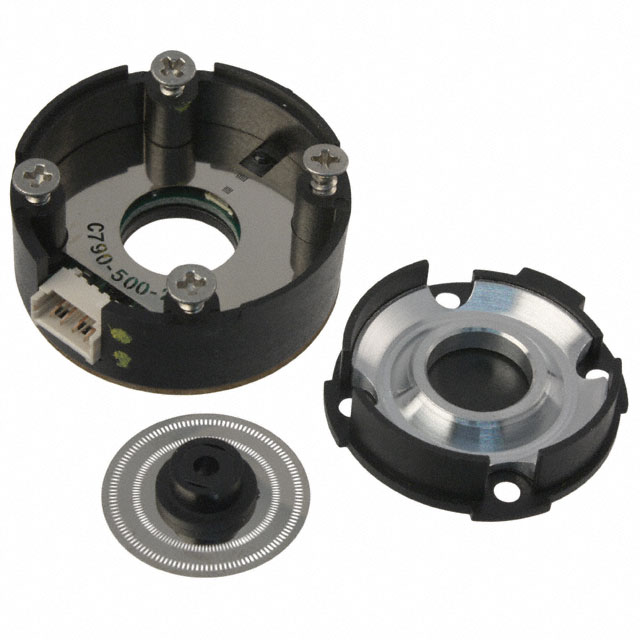

OPE2275H-256
ObsoleteTT Electronics/BI
ROTARY ENCODER OPTICAL 256PPR
OPE2275H-256
ObsoleteTT Electronics/BI
ROTARY ENCODER OPTICAL 256PPR
Description
General part information
OPE2275H-256
Rotary Encoder Optical 256 Quadrature (Incremental) Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | OPE2275H-256 |
|---|---|
| Actuator Diameter | 2 mm |
| Actuator Stroke | 2 mm |
| Actuator Type | Open Center |
| Built in Switch | No |
| Detent | No |
| Encoder Type | Optical |
| Mounting Type | Chassis Mount, Motors |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 256 |
| Termination Style | Terminal Pins |
| Voltage - Supply | 5 VDC |
