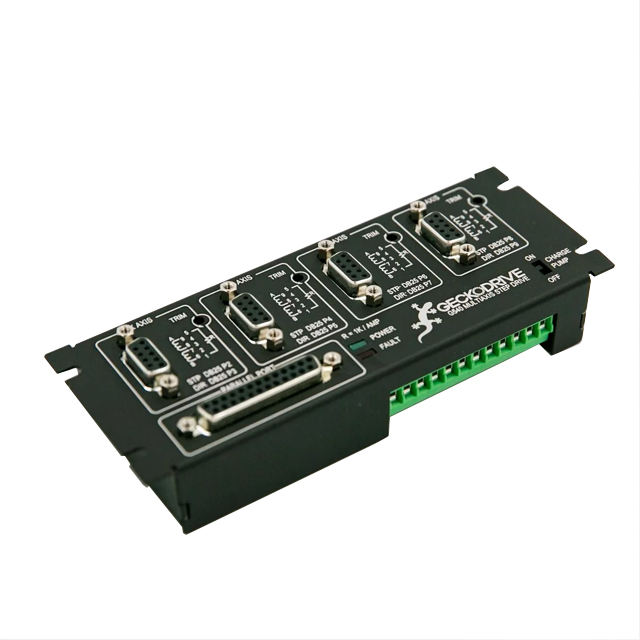

G540 FOUR AXIS STEP MOTOR CONTROL

Active

Geckodrive, Inc.

50VDC 3.5A 4-AXIS STP MTR CTRL

Search across all available documentation for this part.

Active

Geckodrive, Inc.

50VDC 3.5A 4-AXIS STP MTR CTRL

Technical Specifications

Parameters and characteristics for this part

Specification	G540 FOUR AXIS STEP MOTOR CONTROL

Control / Drive Type	Bipolar, Stepper
Current - Output	3.5 A
Motor Type	Stepper
Mounting Type	Chassis Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Type	Module
Voltage - Load [Max]	50 V
Voltage - Load [Min]	18 V
Voltage - Supply [Max]	50 VDC
Voltage - Supply [Min]	18 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Mounting Type	Control / Drive Type	Voltage - Load [Min]	Voltage - Load [Max]	Current - Output	Motor Type	Operating Temperature [Max]	Operating Temperature [Min]
Geckodrive, Inc. G540 FOUR AXIS STEP MOTOR CONTROL	50 VDC	18 V	Module	Chassis Mount	Bipolar Stepper	18 V	50 V	3.5 A	Stepper	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 289.00

General part information

Stepper, Bipolar 18 ~ 50VDC Supply 3.5A 18 ~ 50V Load
