TMS252012ALM-R33MTAA
ActiveTDK Corporation
IND,0.33UH, 5.7A, 18M, -40~125
TMS252012ALM-R33MTAA
ActiveTDK Corporation
IND,0.33UH, 5.7A, 18M, -40~125
Description
General part information
TMS252012ALM-R33MTAA

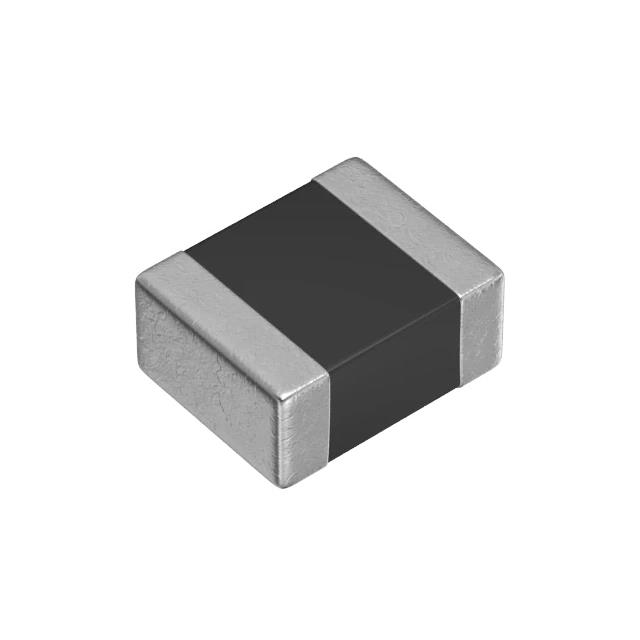

330 nH Unshielded Thin Film Inductor 5.7 A 18mOhm Max 1008 (2520 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | TMS252012ALM-R33MTAA |
|---|---|
| Current - Saturation (Isat) | 7 A |
| Current Rating | 5.7 A |
| DC Resistance (DCR) (Max) | 18 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 330 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1008 (2520 Metric) |
| Package Name | 1008 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Tolerance | 20 % |
| Type | Thin Film |
