Description
General part information

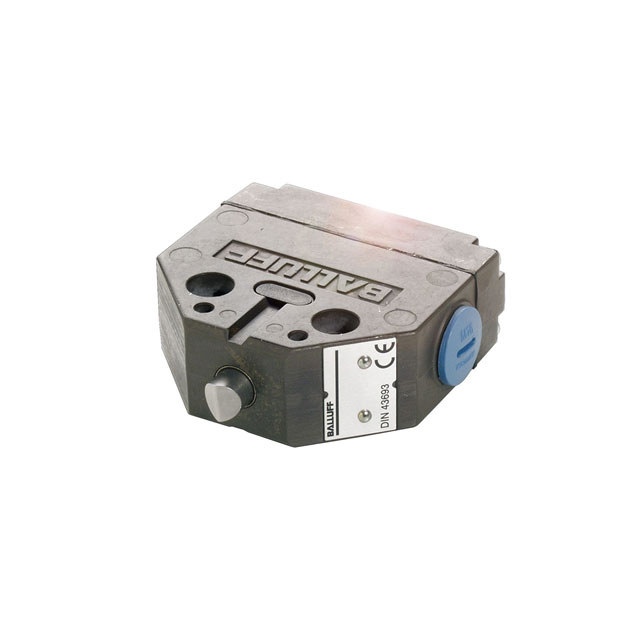

BNS0005
Switch DPST-NO/NC Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BNS0005 |
|---|---|
| Actuator Type | Bevel Plunger |
| Circuit | DPST-NO/NC |
| Current Rating | 6 A |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mechanical Life (Cycles) | 30000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 2039 gf |
| Operating Position (Length) | 0.551 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -5 °C |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 250 V |
