2904892
ActivePhoenix Contact

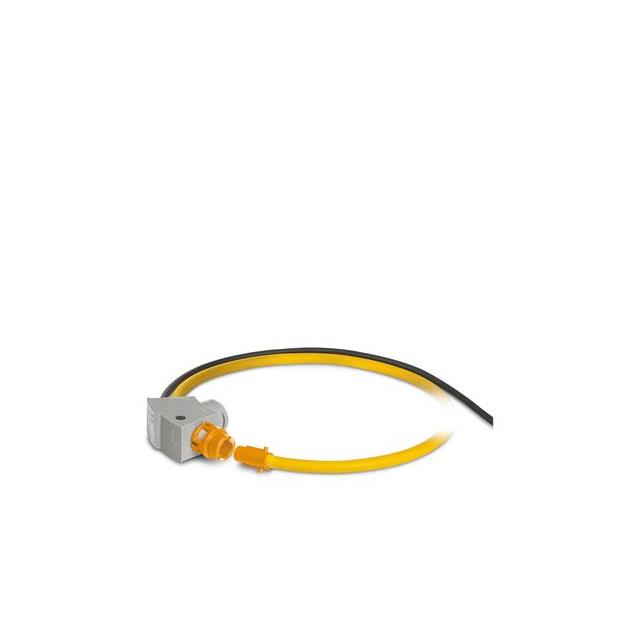

PACT RCP-D190
2904892
ActivePhoenix Contact
PACT RCP-D190
Description
General part information
2904892
Current Sensor 1 Channel Transformer w/Conditioning Bidirectional Module
Technical Specifications
Parameters and characteristics for this part
| Specification | 2904892 |
|---|---|
| Accuracy | 0.2 % |
| For Measuring | AC |
| Frequency (Max) | 20 kHz |
| Frequency (Min) | 40 Hz |
| Linearity Tolerance | 0.1 % |
| Mounting Type | Screw, Busbar (Clamp-on) |
| Number of Channels | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -30 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensor Type | Transformer w/Conditioning |
