86566-2
ActiveTE Connectivity AMP Connectors

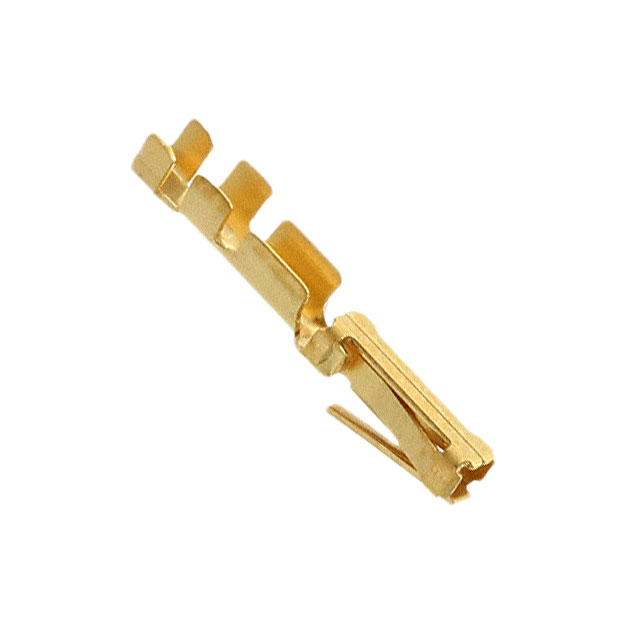

CONTACT FLAT FLEX SOCKET GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
86566-2
ActiveTE Connectivity AMP Connectors
CONTACT FLAT FLEX SOCKET GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 86566-2 | 86566 Series |
|---|---|---|
| Contact Finish | Gold | Gold, Tin, Tin-Lead |
| Contact Finish Thickness | 15 µin | 15 - 100 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 - 2.54 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
86566 Series
CONTACT FLAT FLEX SOCKET GOLD
| Part | Pin or Socket | Contact Termination | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 86566-2 | Socket | Crimp | 15 µin | 0.38 µm | 22 AWG | 26 AWG | Gold |
TE Connectivity AMP Connectors 2-86566-0 | Socket | Crimp | 100 µin | 2.54 µm | 22 AWG | 26 AWG | Tin |
TE Connectivity AMP Connectors 86566-8 | Socket | Crimp | 100 µin | 2.54 µm | 22 AWG | 26 AWG | Tin-Lead |
TE Connectivity AMP Connectors 86566-4 | Socket | Crimp | 30 Áin | 0.76 Ám | 22 AWG | 26 AWG | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.51 | |
| Tape & Reel (TR) | 52000 | $ 0.40 | ||
Description
General part information
86566 Series
Contact Crimp Socket 22-26 AWG Gold
