2-111196-9
ActiveTE Connectivity AMP Connectors

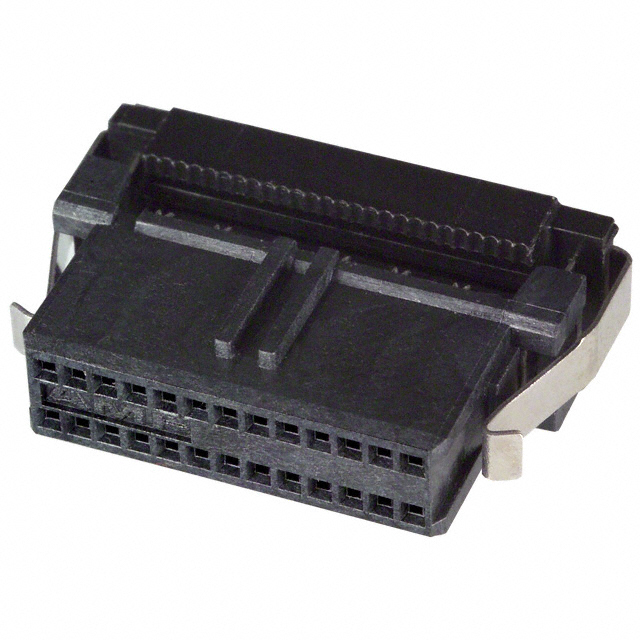

CONN RCPT 26P IDC 30-32AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-111196-9
ActiveTE Connectivity AMP Connectors
CONN RCPT 26P IDC 30-32AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-111196-9 | 111196 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Feed Through | Feed Through |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 26 | 10 - 80 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 0.05 in | 0.05 in |
| Pitch [x] | 1.27 mm | 1.27 mm |
| Row Spacing | 2.54 mm | 2.54 mm |
| Row Spacing [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 32 AWG | 32 AWG |
| Wire Gauge [Min] | 30 AWG | 30 AWG |
| Wire Type | Ribbon Cable | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.81 | |
| 10 | $ 11.58 | |||
| 25 | $ 11.27 | |||
| 50 | $ 10.85 | |||
| 100 | $ 10.05 | |||
| 250 | $ 9.99 | |||
| 500 | $ 9.62 | |||
| 1000 | $ 8.58 | |||
111196 Series
CONN RCPT 26P IDC 30-32AWG GOLD
| Part | Fastening Type | Color | Contact Finish | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Cable Termination | Wire Type | Features | Wire Gauge [Min] | Wire Gauge [Max] | Number of Positions | Connector Type | Row Spacing [x] | Row Spacing | Pitch [x] | Pitch [x] | Mounting Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-111196-9 | Latch Lock | Black | Gold | 2 | 0.76 Ám | 30 Áin | IDC | Ribbon Cable | Feed Through | 30 AWG | 32 AWG | 26 | Receptacle | 0.1 in | 2.54 mm | 0.05 in | 1.27 mm | Free Hanging (In-Line) | Female Socket |
TE Connectivity AMP Connectors 111196-5 | Latch Lock | Black | Gold | 2 | 0.76 Ám | 30 Áin | IDC | Ribbon Cable | Feed Through | 30 AWG | 32 AWG | 24 | Receptacle | 0.1 in | 2.54 mm | 0.05 in | 1.27 mm | Free Hanging (In-Line) | Female Socket |
TE Connectivity AMP Connectors 2-111196-3 | Latch Lock | Black | Gold | 2 | 0.76 Ám | 30 Áin | IDC | Ribbon Cable | Feed Through | 30 AWG | 32 AWG | 72 | Receptacle | 0.1 in | 2.54 mm | 0.05 in | 1.27 mm | Free Hanging (In-Line) | Female Socket |
TE Connectivity AMP Connectors 1-111196-1 | Latch Lock | Black | Gold | 2 | 0.76 Ám | 30 Áin | IDC | Ribbon Cable | Feed Through | 30 AWG | 32 AWG | 50 | Receptacle | 0.1 in | 2.54 mm | 0.05 in | 1.27 mm | Free Hanging (In-Line) | Female Socket |
TE Connectivity AMP Connectors 111196-1 | Latch Lock | Black | Gold | 2 | 0.76 Ám | 30 Áin | IDC | Ribbon Cable | Feed Through | 30 AWG | 32 AWG | 10 | Receptacle | 0.1 in | 2.54 mm | 0.05 in | 1.27 mm | Free Hanging (In-Line) | Female Socket |
TE Connectivity AMP Connectors 111196-9 | Latch Lock | Black | Gold | 2 | 0.76 Ám | 30 Áin | IDC | Ribbon Cable | Feed Through | 30 AWG | 32 AWG | 40 | Receptacle | 0.1 in | 2.54 mm | 0.05 in | 1.27 mm | Free Hanging (In-Line) | Female Socket |
TE Connectivity AMP Connectors 2-111196-5 | Latch Lock | Black | Gold | 2 | 0.76 Ám | 30 Áin | IDC | Ribbon Cable | Feed Through | 30 AWG | 32 AWG | 10 | Receptacle | 0.1 in | 2.54 mm | 0.05 in | 1.27 mm | Free Hanging (In-Line) | Female Socket |
TE Connectivity AMP Connectors 1-111196-5 | Latch Lock | Black | Gold | 2 | 0.76 Ám | 30 Áin | IDC | Ribbon Cable | Feed Through | 30 AWG | 32 AWG | 80 | Receptacle | 0.1 in | 2.54 mm | 0.05 in | 1.27 mm | Free Hanging (In-Line) | Female Socket |
TE Connectivity AMP Connectors 2-111196-0 | Latch Lock | Black | Gold | 2 | 0.76 Ám | 30 Áin | IDC | Ribbon Cable | Feed Through | 30 AWG | 32 AWG | 40 | Receptacle | 0.1 in | 2.54 mm | 0.05 in | 1.27 mm | Free Hanging (In-Line) | Female Socket |
TE Connectivity AMP Connectors 111196-4 | Latch Lock | Black | Gold | 2 | 0.76 Ám | 30 Áin | IDC | Ribbon Cable | Feed Through | 30 AWG | 32 AWG | 20 | Receptacle | 0.1 in | 2.54 mm | 0.05 in | 1.27 mm | Free Hanging (In-Line) | Female Socket |
Description
General part information
111196 Series
26 Position Rectangular Receptacle Connector IDC Gold 30-32 AWG
