104990029

Obsolete

Seeed Technology Co., Ltd

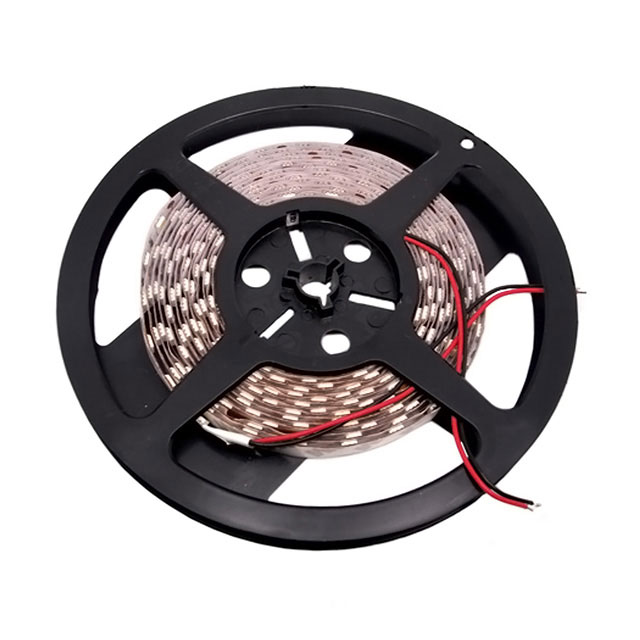

LED MOD RED LINEAR STRIP

Search across all available documentation for this part.

Obsolete

Seeed Technology Co., Ltd

LED MOD RED LINEAR STRIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module - Red Linear Light Strip, Flexible

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	104990029	1049900 Series

Color	Red	Green, Red, Blue, Yellow
Configuration	Linear Light Strip, Flexible	Linear Light Strip, Flexible
Current - Max [Max]	1.2 A	1.2 A
Features	-	IP65
Height [z]	2 mm	2 - 3.2 mm
Lens Type	Flat	Flat, Domed
Lumens/Watt @ Current - Test	-	11 - 56 lm/W
Luminous Flux @ Current/Temperature	-	43 lm
Luminous Flux @ Current/Temperature	-	13 lm
Luminous Flux @ Current/Temperature	-	55 lm
Size / Dimension [x]	5000 mm	5000 mm
Size / Dimension [y]	10 mm	10 mm
Type	LED Module	LED Module
Viewing Angle	-	140 °
Voltage - Forward (Vf) (Typ)	12 V	2.2 - 12 V
Wavelength	-	463 - 623 nm

LED MOD GREEN LINEAR STRIP

Part	Voltage - Forward (Vf) (Typ)	Lens Type	Height [z]	Current - Max [Max]	Color	Features	Size / Dimension [x]	Size / Dimension [y]	Type	Configuration	Wavelength	Lumens/Watt @ Current - Test	Viewing Angle	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]
Seeed Technology Co., Ltd 104990043	12 V	Flat	3.2 mm	1.2 A	Green	IP65	5000 mm	10 mm	LED Module	Flexible, Linear Light Strip
Seeed Technology Co., Ltd 104990029	12 V	Flat	2 mm	1.2 A	Red		5000 mm	10 mm	LED Module	Flexible, Linear Light Strip
Seeed Technology Co., Ltd 104990030	12 V	Flat	3.2 mm	1.2 A	Red	IP65	5000 mm	10 mm	LED Module	Flexible, Linear Light Strip
Seeed Technology Co., Ltd 104990074	2.2 V, 3.4 V, 3.4 V	Domed			Blue, Green, Red						463 nm, 523 nm, 623 nm	11 lm/W, 46 lm/W, 56 lm/W	140 °	43 lm	13 lm	55 lm
Seeed Technology Co., Ltd 104990033	12 V	Flat	2 mm	1.2 A	Yellow		5000 mm	10 mm	LED Module	Flexible, Linear Light Strip
Seeed Technology Co., Ltd 104990031	12 V	Flat	2 mm	1.2 A	Blue, Green, Red		5000 mm	10 mm	LED Module	Flexible, Linear Light Strip
Seeed Technology Co., Ltd 104990037	12 V	Flat	2 mm	1.2 A	Green		5000 mm	10 mm	LED Module	Flexible, Linear Light Strip
