B3221B7L111240E100
ActiveAmphenol ICC (FCI)
B322-1B7L1-11240-E100-FLOATING P
B3221B7L111240E100
ActiveAmphenol ICC (FCI)
B322-1B7L1-11240-E100-FLOATING P
Description
General part information
B3221B7L111240E100

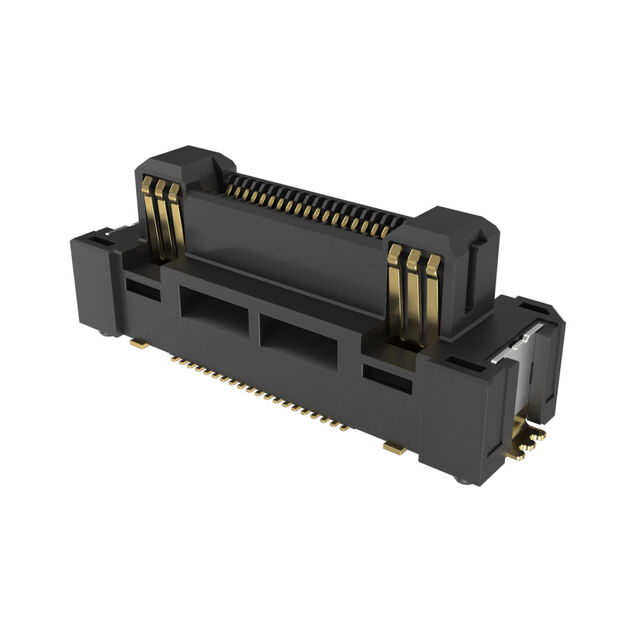

40 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | B3221B7L111240E100 |
|---|---|
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.94 µin |
| Features | Board Guide, Solder Retention |
| Height Above Board | 0.331 in |
| Mated Stacking Height | 10 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch | 0.02 in |
