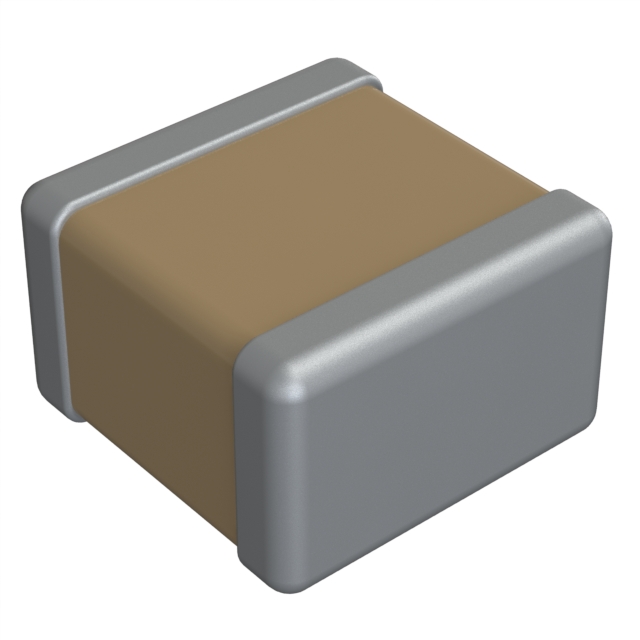

1111J1000101JQT

Active

Knowles Syfer

CAP CER 100PF 100V C0G/NP0 1111

Deep-Dive with AI

Search across all available documentation for this part.

1111J1000101JQT

Active

Knowles Syfer

CAP CER 100PF 100V C0G/NP0 1111

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1111J1000101JQT	1111J Series

Applications	General Purpose	General Purpose, High Frequency, Microwave, RF
Capacitance	100 pF	0.001 - 750 pF
Features	Low Loss, High Q	Low Loss, High Q
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1111 (2828 Metric)	1111 (2828 Metric)
Size / Dimension [x]	2.79 mm	2.79 mm
Size / Dimension [x]	0.11 in	0.11 in
Size / Dimension [y]	0.11 in	0.11 in
Size / Dimension [y]	2.79 mm	2.79 mm
Temperature Coefficient	NP0, C0G	NP0, C0G, NP0 (1B)
Thickness (Max)	1.78 mm	1.78 mm
Thickness (Max) [Max]	0.07 in	0.07 in
Tolerance	5 %	0.05 - 5 pF
Voltage - Rated	100 V	100 - 2000 V
Voltage - Rated	-	1 - 2 kV

1111J Series

CAP CER 3PF 2KV C0G/NP0 1111

Part	Features	Temperature Coefficient	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Voltage - Rated	Voltage - Rated	Thickness (Max)	Thickness (Max) [Max]	Capacitance
Knowles Syfer 1111J2K03P00HQT	High Q, Low Loss	C0G, NP0	MLCC, Surface Mount	1111 (2828 Metric)	0.11 in	2.79 mm	0.11 in	2.79 mm	General Purpose	-55 °C	125 °C	0.05 pF	2 kV	2000 V	1.78 mm	0.07 in	3 pF
Knowles Syfer 1111J1500270FQT	High Q, Low Loss	C0G, NP0	MLCC, Surface Mount	1111 (2828 Metric)	0.11 in	2.79 mm	0.11 in	2.79 mm	General Purpose	-55 °C	125 °C	1 %		150 V	1.78 mm	0.07 in	27 pF
Knowles Syfer 1111J5000431JQT	High Q, Low Loss	C0G, NP0	MLCC, Surface Mount	1111 (2828 Metric)	0.11 in	2.79 mm	0.11 in	2.79 mm	General Purpose	-55 °C	125 °C	5 %		500 V	1.78 mm	0.07 in	430 pF
Knowles Syfer 1111J1K00750JQT	High Q, Low Loss	C0G, NP0	MLCC, Surface Mount	1111 (2828 Metric)	0.11 in	2.79 mm	0.11 in	2.79 mm	General Purpose	-55 °C	125 °C	5 %	1 kV	1000 V	1.78 mm	0.07 in	75 pF
Knowles Syfer 1111J5000751FQT	High Q, Low Loss	C0G, NP0	MLCC, Surface Mount	1111 (2828 Metric)	0.11 in	2.79 mm	0.11 in	2.79 mm	General Purpose	-55 °C	125 °C	1 %		500 V	1.78 mm	0.07 in	750 pF
Knowles Syfer 1111J3000102JQT	High Q, Low Loss	C0G, NP0	MLCC, Surface Mount	1111 (2828 Metric)	0.11 in	2.79 mm	0.11 in	2.79 mm	General Purpose	-55 °C	125 °C	5 %		300 V	1.78 mm	0.07 in	0.001 µF
Knowles Syfer 1111J1K00201JQT	High Q, Low Loss	C0G, NP0	MLCC, Surface Mount	1111 (2828 Metric)	0.11 in	2.79 mm	0.11 in	2.79 mm	General Purpose	-55 °C	125 °C	5 %	1 kV	1000 V	1.78 mm	0.07 in	200 pF
Knowles Syfer 1111J1K03P90CQT	High Q, Low Loss	C0G, NP0	MLCC, Surface Mount	1111 (2828 Metric)	0.11 in	2.79 mm	0.11 in	2.79 mm	General Purpose	-55 °C	125 °C	0.25 pF	1 kV	1000 V	1.78 mm	0.07 in	3.9 pF
Knowles Syfer 1111J2000221FQT	High Q, Low Loss	C0G, NP0	MLCC, Surface Mount	1111 (2828 Metric)	0.11 in	2.79 mm	0.11 in	2.79 mm	General Purpose	-55 °C	125 °C	1 %		200 V	1.78 mm	0.07 in	220 pF
Knowles Syfer 1111J1000181JQT	High Q, Low Loss	C0G, NP0	MLCC, Surface Mount	1111 (2828 Metric)	0.11 in	2.79 mm	0.11 in	2.79 mm	General Purpose	-55 °C	125 °C	5 %		100 V	1.78 mm	0.07 in	180 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1111J Series

100 pF ±5% 100V Ceramic Capacitor C0G, NP0 1111 (2828 Metric)

Documents

Technical documentation and resources

No documents available
