PTS120602B500RP100
ActiveVishay Dale
THERMISTOR RTD 548.67 OHM 0.85% 2-PIN 1206 SURFACE MOUNT SOLDER PAD >= -3.5 T/R
PTS120602B500RP100
ActiveVishay Dale
THERMISTOR RTD 548.67 OHM 0.85% 2-PIN 1206 SURFACE MOUNT SOLDER PAD >= -3.5 T/R
Description
General part information
PTS120602B500RP100

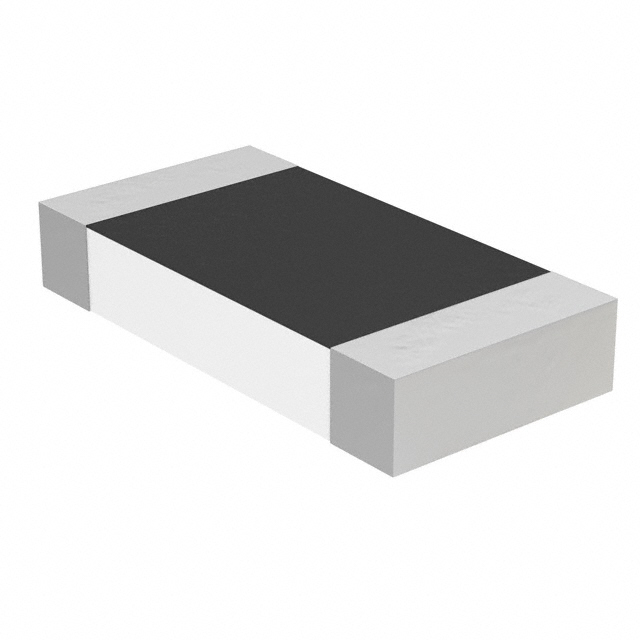

RTD Platinum (Pt) 3850ppm/°C 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | PTS120602B500RP100 |
|---|---|
| Current | 0.4 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Resistance | 500 Ohms |
| Resistance Tolerance (%) | 0.6 % |
| RTD Material | Platinum (Pt) |
| Temperature Coefficient | 3850 ppm/°C |
| Termination | SMD (SMT) Tabs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
