0364 V109 VP25
ActiveLumberg Inc

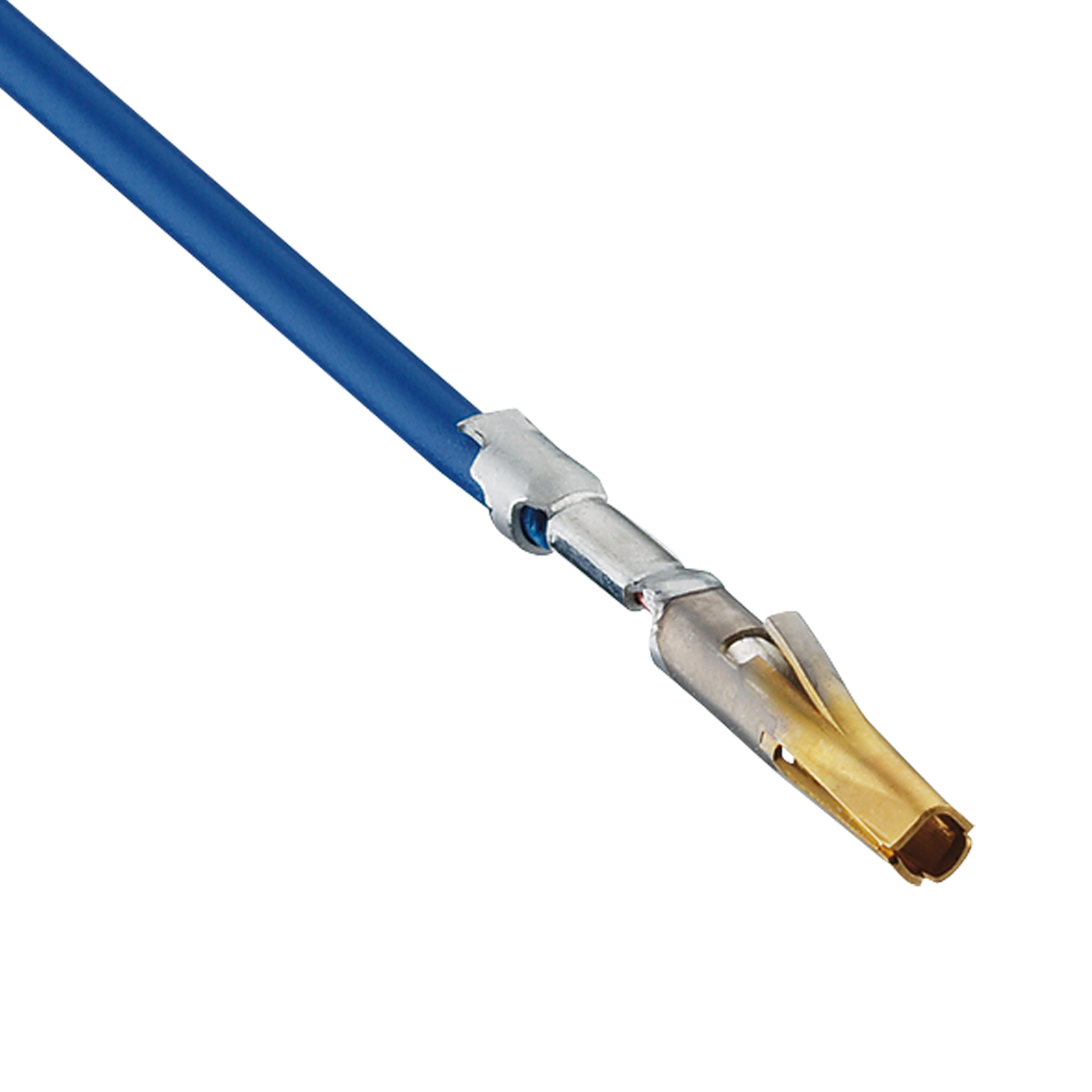

M16 CRIMP CONTACT BUSHING GOLD
0364 V109 VP25
ActiveLumberg Inc
M16 CRIMP CONTACT BUSHING GOLD
Description
General part information
0364 V109 VP25
M16 CRIMP CONTACT BUSHING GOLD
Technical Specifications
Parameters and characteristics for this part
| Specification | 0364 V109 VP25 |
|---|---|
| Contact Finish | Gold |
| Contact Material | Bronze |
| Contact Size | 2.2 mm |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Wire Gauge or Range - AWG (Max) | 23 AWG |
| Wire Gauge or Range - AWG (Min) | 18 AWG |
| Wire Gauge or Range - mm² (Maximum) | 0.75 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.25 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
