LV8736VGEVB
ActiveEVALUATION BOARD, LV8736V STEPPER/DC MOTOR DRIVER, CONSTANT-CURRENT CONTROL, PWM, 2-CHANNEL
LV8736VGEVB
ActiveEVALUATION BOARD, LV8736V STEPPER/DC MOTOR DRIVER, CONSTANT-CURRENT CONTROL, PWM, 2-CHANNEL
Description
General part information
LV8736VGEVB

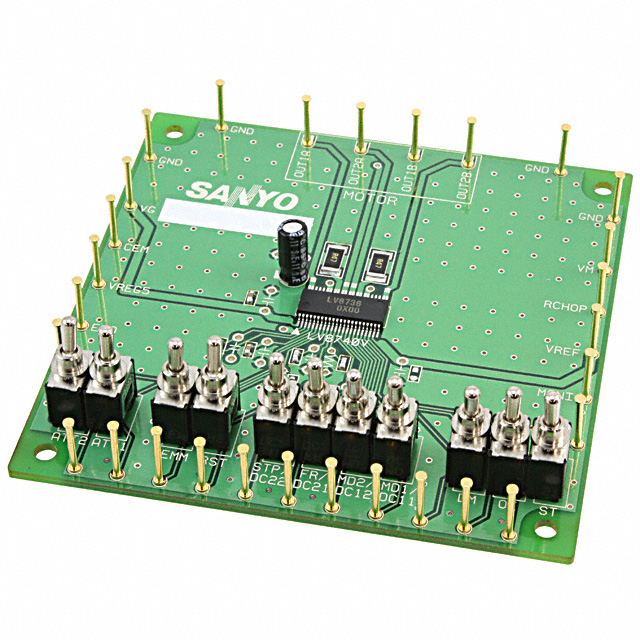

LV8736VGEVB is a evaluation board for LV8736V motor driver. The LV8736V is a 2-channel H-bridge driver IC. It can switch a stepping motor driver, which is capable of micro step drive and supports 1/8 step resolution, and two channels of a brushed motor driver, which supports forward, reverse, brake, and standby of a motor.
Technical Specifications
Parameters and characteristics for this part
| Specification | LV8736VGEVB |
|---|---|
| Contents | Board |
| Function | Stepper, Motor Controller/Driver |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | LV8736V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
