8A1012C-Z

Active

Nidec Components Corporation

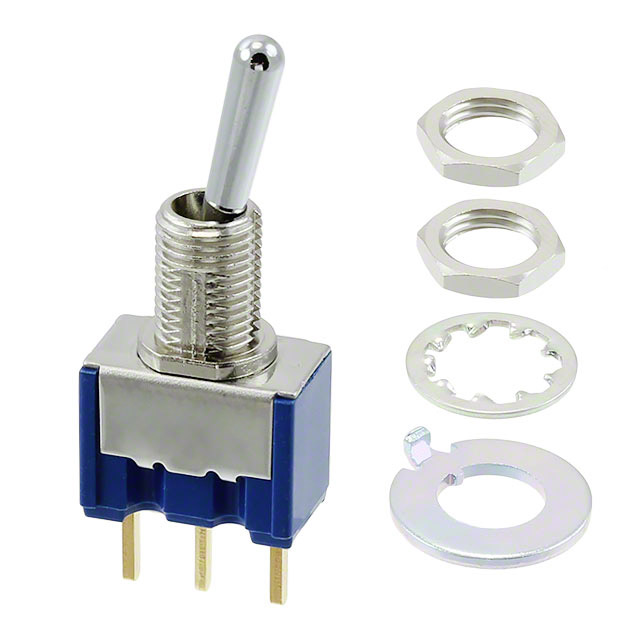

SWITCH TOGGLE SPDT 25MA 20V

Search across all available documentation for this part.

Active

Nidec Components Corporation

SWITCH TOGGLE SPDT 25MA 20V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8A1012C-Z	8A1012 Series

Actuator Type	Standard Round	Standard Round
Bushing Thread	1/4-40	1/4-40
Circuit	SPDT	SPDT
Current Rating (Amps)	25 mA	4 - 25 A
Electrical Life	50000 Cycles	50000 Cycles
Features	Sealed - Flux Protection	Sealed - Flux Protection
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm	6.5 mm
Switch Function	On-On	On-On
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	-	125 V
Voltage Rating - DC	20 V	20 - 30 V

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Type	Illumination	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Bushing Thread	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Switch Function	Electrical Life	Voltage Rating - AC	Features
Nidec Components Corporation 8A1012-Z	Standard Round	Non-Illuminated	4 A, 6 A	6.5 mm	30 V	1/4-40	PC Pin	-30 ░C	85 °C	SPDT	On-On	50000 Cycles	125 V	Sealed - Flux Protection
Nidec Components Corporation 8A1012C-Z	Standard Round	Non-Illuminated	25 mA	6.5 mm	20 V	1/4-40	PC Pin	-30 ░C	85 °C	SPDT	On-On	50000 Cycles		Sealed - Flux Protection
