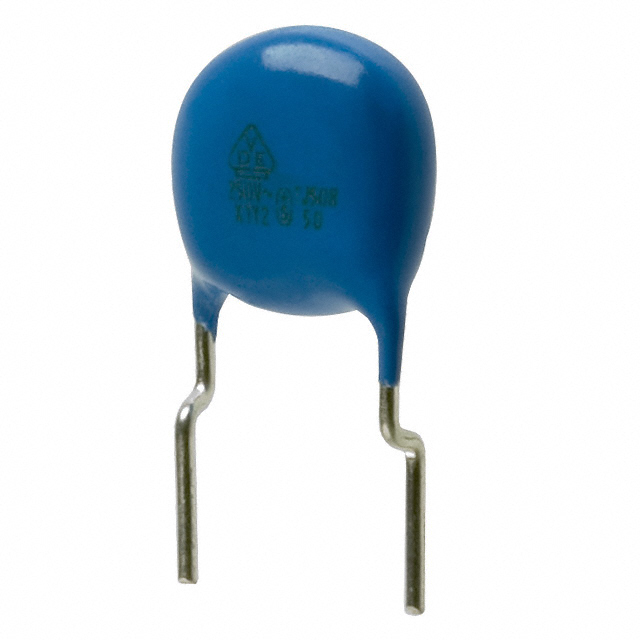

CS95-B2GA681KYNS
ObsoleteTDK Corporation
CAP CER 680PF 250VAC RADIAL
CS95-B2GA681KYNS
ObsoleteTDK Corporation
CAP CER 680PF 250VAC RADIAL
Description
General part information
CS95-B2GA681KYNS
680 pF ±10% 250VAC Ceramic Capacitor B Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | CS95-B2GA681KYNS |
|---|---|
| Applications | Safety |
| Capacitance | 680 pF |
| Features | High Voltage |
| Height - Seated (Max) | 0.531 in |
| Lead Spacing | 0.295 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Disc, Radial |
| Ratings | Y2, X1 |
| Size / Dimension Diameter | 0.374 in |
| Temperature Coefficient | B |
| Tolerance | 10 % |
| Voltage - Rated | 250 V |
