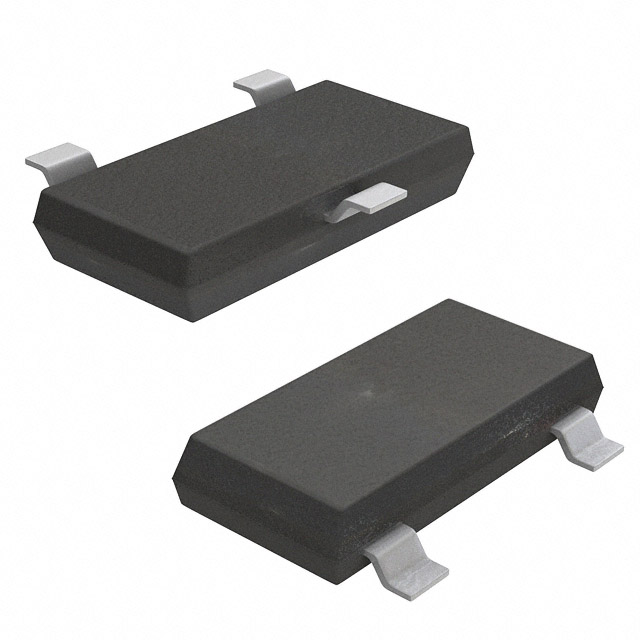

CPDH3-5V0U-HF

Active

Comchip Technology

ESD SUPPRESSOR DIODE TVS UNI-DIR 5V 10VC 3-PIN SOT-523 T/R

Search across all available documentation for this part.

Active

Comchip Technology

ESD SUPPRESSOR DIODE TVS UNI-DIR 5V 10VC 3-PIN SOT-523 T/R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPDH3-5V0U-HF	CPDH3-5 Series

Applications	General Purpose	General Purpose
Current - Peak Pulse (10/1000µs)	8 A	8 A
Mounting Type	Surface Mount	Surface Mount
Package / Case	SOT-523	SOT-523
Power - Peak Pulse	80 W	80 W
Power Line Protection	False	False
Supplier Device Package	SOT-523	SOT-523
Type	Zener	Zener
Unidirectional Channels	2	2
Voltage - Breakdown (Min) [Min]	6.1 V	6.1 V
Voltage - Clamping (Max) @ Ipp [Max]	10 V	10 V
Voltage - Reverse Standoff (Typ)	5 V	5 V

TVS DIODE 5VWM 10VC SOT523

Part	Applications	Supplier Device Package	Type	Current - Peak Pulse (10/1000µs)	Unidirectional Channels	Power Line Protection	Power - Peak Pulse	Mounting Type	Voltage - Breakdown (Min) [Min]	Package / Case	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)
Comchip Technology CPDH3-5V0U	General Purpose	SOT-523	Zener	8 A	2		80 W	Surface Mount	6.1 V	SOT-523	10 V	5 V
Comchip Technology CPDH3-5V0U-HF	General Purpose	SOT-523	Zener	8 A	2		80 W	Surface Mount	6.1 V	SOT-523	10 V	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10V Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount SOT-523
