Description
General part information

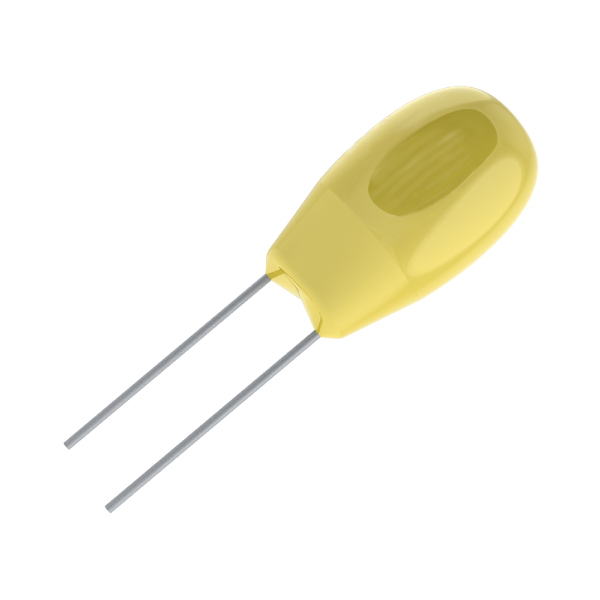

T350H107K006AT7301
100 µF Conformal Coated Tantalum Capacitors 6 V Radial, Disc 1.6Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T350H107K006AT7301 |
|---|---|
| Capacitance | 100 µF |
| ESR (Equivalent Series Resistance) | 1.6 Ohm |
| Features | General Purpose |
| Height - Seated (Max) | 0.402 in |
| Lead Spacing | 0.1 in |
| Manufacturer Size Code | H |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.299 in |
| Tolerance | 10 % |
| Type | Conformal Coated |
| Voltage - Rated | 6 VDC |
