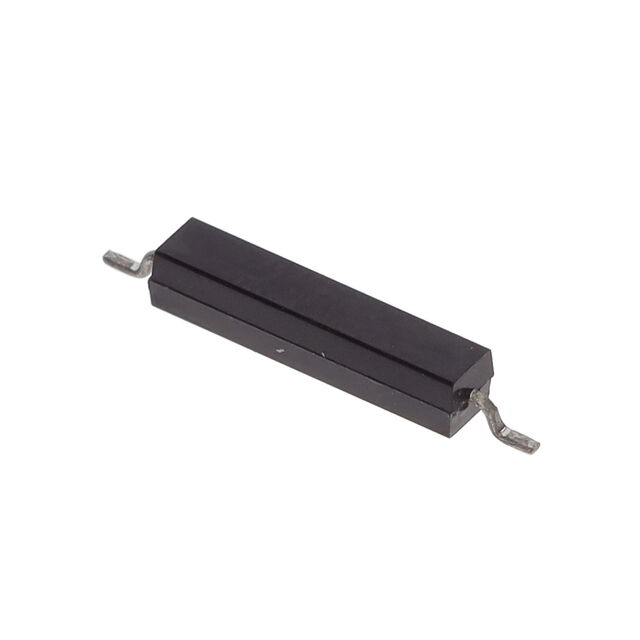

RI-02SMDM-1015-G1

Active

Comus International

SWITCH REED SPST-NO 500MA 140V

Search across all available documentation for this part.

Active

Comus International

SWITCH REED SPST-NO 500MA 140V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH REED SPST-NO 500MA 140V

Part	Current - Carry	Operate Range [Min]	Operate Range [Max]	Voltage - Switching DC	Height Above Board [z]	Height Above Board [z]	Length - Overall [x]	Length - Overall [x]	Voltage - Switching AC [custom]	Release Range [Max]	Release Range [Min]	Current - Switching	Size - Body [z]	Size - Body [x]	Size - Body [y]	Size - Body [z]	Size - Body [y]	Size - Body [x]	Power - Rated	Type	Circuit	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Comus International RI-02SMDM-1520-G1	500 mA	15	20 AT	200 V	2.41 mm	0.095 in	0.639 in	16.23 mm	140 V	18 AT	4 AT	500 mA	0.09 "	0.452 in	0.09 in	2.29 mm	2.29 mm	11.48 mm	10 W	Molded Body Reed	SPST-NO	Gull Wing	Surface Mount	125 °C	-40 °C
Comus International RI-02SMDM-1015-G1	500 mA	10	15 AT	200 V	2.41 mm	0.095 in	0.639 in	16.23 mm	140 V	13 AT	2 AT	500 mA	0.09 "	0.452 in	0.09 in	2.29 mm	2.29 mm	11.48 mm	10 W	Molded Body Reed	SPST-NO	Gull Wing	Surface Mount	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Molded Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 10W 500mA (AC/DC) 140 V Surface Mount
