CB1.13-2IPX-1.5IN-6O

Active

Lighthorse Technologies, Inc

CBL ASSY IPEX MHF1 PLUG-PLG 1.5"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CB1.13-2IPX-1.5IN-6O

Active

Lighthorse Technologies, Inc

CBL ASSY IPEX MHF1 PLUG-PLG 1.5"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.36
		10	$ 4.11
		25	$ 3.88
		50	$ 3.68
		100	$ 3.49
		250	$ 3.17
		500	$ 2.91
		1000	$ 2.69

Description

General part information

CB1.13 Series

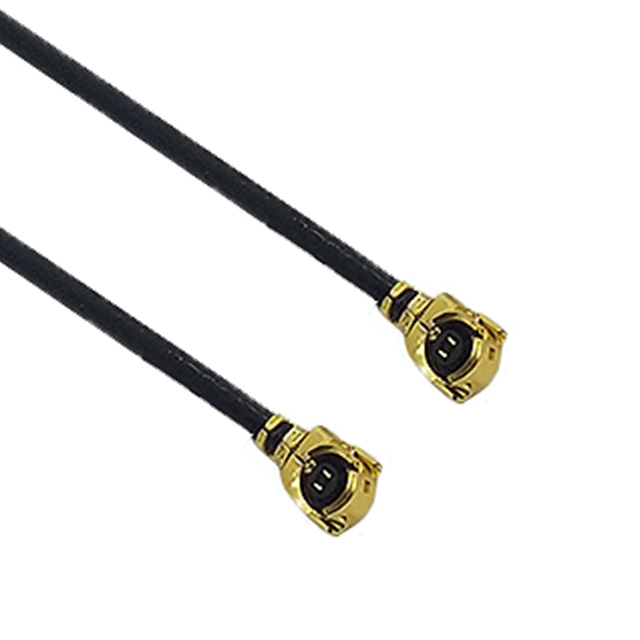

Cable Assembly Coaxial U.FL (UMCC), IPEX MHF1 to U.FL (UMCC), IPEX MHF1 1.13mm OD Coaxial Cable 1.500" (38.10mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CB1.13-2IPX-1.5IN-6O	CB1.13 Series

1st Connector	Right Angle, IPEX MHF1 Plug, U.FL (UMCC)	IPEX MHF4L Plug, Right Angle, U.FL (UMCC), Right Angle, I-PEX MHF1 Plug, IPEX MHF1 Plug, SMA Jack, I-PEX MHF4L Plug, Right Angle, RP-SMA Jack
1st Connector Mounting Feature	-	Bulkhead - Front Side Nut
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Panel Mount
1st Contact Gender	Female	Female, Male
2nd Connector	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	IPEX MHF4L Plug, Right Angle, Right Angle, I-PEX MHF1 Plug, U.FL (UMCC), U.FL (UMCC), IPEX MHF1 Plug, Right Angle, I-PEX MHF1 LK (Locking) Plug, Right Angle, I-PEX MHF4L Plug, Right Angle, IPEX MHF1 LK (Locking) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Impedance	50 Ohms	50 Ohms
Cable Type	1.13mm OD Coaxial Cable	1.13mm OD Coaxial Cable
Color	Black	Black
Features	Opposite Orientation, Shielded	Opposite Orientation, Shielded, Locking
Frequency - Max [Max]	9 GHz	9 - 6000 GHz
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Length	1.5 "	1.5 - 12 in
Length	38.1 mm	38.1 - 304.8 mm
Length	-	1 - 12.5 in
Length	-	25.4 - 317.5 mm
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Impedance	50 Ohms	50 Ohms
Style	IPEX MHF1 to U.FL (UMCC), U.FL (UMCC), IPEX MHF1	IPEX MHF4L to IPEX MHF4L, I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC), I-PEX MHF1, IPEX MHF1 to U.FL (UMCC), IPEX MHF1, I-PEX MHF1 LK to SMA, I-PEX MHF4L to I-PEX MHF4L, I-PEX MHF1 LK to RP-SMA, IPEX MHF1 LK to SMA

CB1.13 Series

CBL ASSY MHF4L-MHF4L PL-PL 8"

Part	Cable Type	Style	1st Connector	2nd Contact Gender	1st Contact Gender	Color	Length	Length	Frequency - Max [Max]	Features	Overall Impedance	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Connector	Cable Impedance	Length [x]	Length [x]	Ingress Protection	1st Connector Mounting Feature
Lighthorse Technologies, Inc CB1.13-2IPX4L-8IN-6O	1.13mm OD Coaxial Cable	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L Plug, Right Angle	Female	Female	Black	8 in	203.2 mm	12 GHz	Opposite Orientation, Shielded	50 Ohms	90 °C	-40 °C	Free Hanging (In-Line)	Free Hanging (In-Line)	IPEX MHF4L Plug, Right Angle	50 Ohms
Lighthorse Technologies, Inc CB1.13-2IPX4L-1IN	1.13mm OD Coaxial Cable	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L Plug, Right Angle	Female	Female	Black			12 GHz	Shielded	50 Ohms	90 °C	-40 °C	Free Hanging (In-Line)	Free Hanging (In-Line)	IPEX MHF4L Plug, Right Angle	50 Ohms	1 in	25.4 mm
Lighthorse Technologies, Inc CB1.13-2IPX-7.5IN-6O	1.13mm OD Coaxial Cable	I-PEX MHF1, I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC)	I-PEX MHF1 Plug, Right Angle, U.FL (UMCC)	Female	Female	Black			9 GHz	Opposite Orientation, Shielded	50 Ohms	90 °C	-40 °C	Free Hanging (In-Line)	Free Hanging (In-Line)	I-PEX MHF1 Plug, Right Angle, U.FL (UMCC)	50 Ohms	7.5 in	190.5 mm
Lighthorse Technologies, Inc CB1.13-2IPX4L-4IN-6O	1.13mm OD Coaxial Cable	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L Plug, Right Angle	Female	Female	Black	4 in	101.6 mm	12 GHz	Opposite Orientation, Shielded	50 Ohms	90 °C	-40 °C	Free Hanging (In-Line)	Free Hanging (In-Line)	IPEX MHF4L Plug, Right Angle	50 Ohms
Lighthorse Technologies, Inc CB1.13-2IPX4L-8.5IN	1.13mm OD Coaxial Cable	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L Plug, Right Angle	Female	Female	Black			12 GHz	Shielded	50 Ohms	90 °C	-40 °C	Free Hanging (In-Line)	Free Hanging (In-Line)	IPEX MHF4L Plug, Right Angle	50 Ohms
Lighthorse Technologies, Inc CB1.13-2IPX-3.5IN-6O	1.13mm OD Coaxial Cable	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Female	Female	Black			9 GHz	Opposite Orientation, Shielded	50 Ohms	90 °C	-40 °C	Free Hanging (In-Line)	Free Hanging (In-Line)	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	3.5 in	88.9 mm
Lighthorse Technologies, Inc CB1.13-IPXLK-SAF3OGTX15-4IN	1.13mm OD Coaxial Cable	I-PEX MHF1 LK to SMA	SMA Jack	Female	Female	Black	4 in	101.6 mm	6000 MHz	Locking	50 Ohms	90 °C	-40 °C	Panel Mount	Free Hanging (In-Line)	I-PEX MHF1 LK (Locking) Plug, Right Angle	50 Ohms			IP67 - Dust Tight, Waterproof	Bulkhead - Front Side Nut
Lighthorse Technologies, Inc CB1.13-2IPX-1IN-6O	1.13mm OD Coaxial Cable	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Female	Female	Black			9 GHz	Opposite Orientation, Shielded	50 Ohms	90 °C	-40 °C	Free Hanging (In-Line)	Free Hanging (In-Line)	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	1 in	25.4 mm
Lighthorse Technologies, Inc CB1.13-2IPX-8.5IN	1.13mm OD Coaxial Cable	I-PEX MHF1, I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC)	I-PEX MHF1 Plug, Right Angle, U.FL (UMCC)	Female	Female	Black			9 GHz	Shielded	50 Ohms	90 °C	-40 °C	Free Hanging (In-Line)	Free Hanging (In-Line)	I-PEX MHF1 Plug, Right Angle, U.FL (UMCC)	50 Ohms
Lighthorse Technologies, Inc CB1.13-2IPX-11.5IN-6O	1.13mm OD Coaxial Cable	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Female	Female	Black	11.5 "	292.1 mm	9 GHz	Opposite Orientation, Shielded	50 Ohms	90 °C	-40 °C	Free Hanging (In-Line)	Free Hanging (In-Line)	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms
