296XD254B1N
ObsoleteCTS Electrocomponents
POT 250K OHM 0.15W CARBON LINEAR
296XD254B1N
ObsoleteCTS Electrocomponents
POT 250K OHM 0.15W CARBON LINEAR
Description
General part information
296XD254B1N

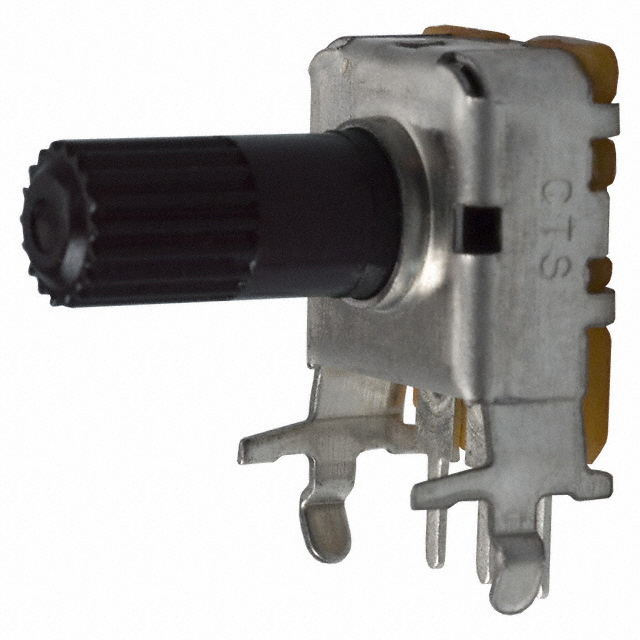

250k Ohm 1 Gang Linear Through Hole, Snap In Potentiometer 1.0 Turns Carbon 0.15W PC Pins, Board Locks
Technical Specifications
Parameters and characteristics for this part
| Specification | 296XD254B1N |
|---|---|
| Actuator Diameter | 0.236 in |
| Actuator Length | 0.539 in |
| Actuator Type | Knurled |
| Adjustment Type | Side Adjustment |
| Built in Switch | None |
| Mounting Type | Through Hole, Snap In |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 150 mW |
| Resistance | 250 kOhm |
| Resistive Material | Carbon |
| Rotation | 300 ° |
| Size - Body Face Length | 0.646 in |
| Size - Body Face Width | 0.492 in |
| Size - Body Shape | Rectangular |
| Taper | Linear |
| Termination Style | PC Pins, Board Locks |
| Tolerance | 20 % |
