SDTA39GT2W

Active

ChromeLED

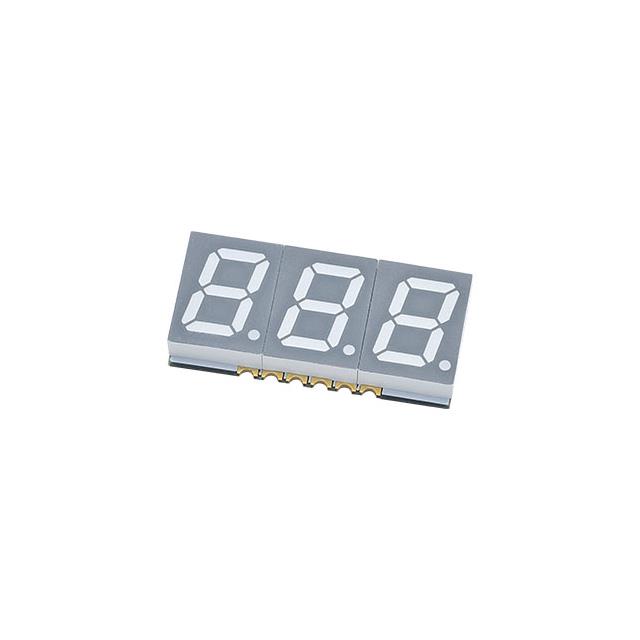

DISPLAY 7SEG 0.39" TRI GRN 12SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDTA39GT2W

Active

ChromeLED

DISPLAY 7SEG 0.39" TRI GRN 12SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SDTA39GT2W	SDTA39 Series

Color	Green	Green, Blue, Red
Common Pin	Common Anode	Common Anode
Current - Test	20 mA	5 - 20 mA
Digit/Alpha Size	0.39 in	0.39 in
Digit/Alpha Size	10 mm	10 mm
Display Type	7-Segment	7-Segment
Millicandela Rating	130 mcd	20 - 130 mcd
Number of Characters	3	3
Package / Case	12-SMD, No Lead	12-SMD, No Lead
Power Dissipation (Max) [Max]	120 mW	70 - 120 mW
Size / Dimension [x]	0.148 ", 3.75 mm	0.148 - 3.75 "
Size / Dimension [y]	29.7 mm, 1.169 "	1.169 - 29.7 mm
Size / Dimension [z]	13 mm, 0.512 "	0.512 - 13 mm
Voltage - Forward (Vf) (Typ)	3.2 V	1.8 - 3.2 V
Wavelength - Peak	525 nm	525 - 644 nm

SDTA39 Series

DISPLAY 7SEG 0.39" TRI GRN 12SMD

Part	Millicandela Rating	Number of Characters	Package / Case	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Common Pin	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Display Type	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]	Color	Current - Test
ChromeLED SDTA39GT2W	130 mcd	3	12-SMD, No Lead	3.2 V	525 nm	Common Anode	0.148 ", 3.75 mm	1.169 ", 29.7 mm	0.512 ", 13 mm	7-Segment	0.39 in	10 mm	120 mW	Green	20 mA
ChromeLED SDTA39B2W	30 mcd	3	12-SMD, No Lead	2.8 V		Common Anode	0.148 ", 3.75 mm	1.169 ", 29.7 mm	0.512 ", 13 mm	7-Segment	0.39 in	10 mm	120 mW	Blue	5 mA
ChromeLED SDTA39RR1W	20 mcd	3	12-SMD, No Lead	1.8 V	644 nm	Common Anode	0.148 ", 3.75 mm	1.169 ", 29.7 mm	0.512 ", 13 mm	7-Segment	0.39 in	10 mm	70 mW	Red	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1	$ 4.20

Description

General part information

SDTA39 Series

Display Modules - LED Character and Numeric Green 7-Segment 3 Character Common Anode 3.2V 20mA 0.512" H x 1.169" W x 0.148" D (13.00mm x 29.70mm x 3.75mm) 12-SMD, No Lead
