Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STEVAL-IFP022V1 | VNI8200 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | High Side Driver (Internal FET) | High Side Driver (Internal FET) |
| Primary Attributes | 8-Channel (Octal) | 8-Channel (Octal) |
| Secondary Attributes | On-Board LEDs | On-Board LEDs |
| Supplied Contents | - | Board(s) |
| Type | Power Management | Power Management |
| Utilized IC / Part | VNI8200XP | VNI8200XP-32, VNI8200XP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 87.17 | |
VNI8200 Series
Eight-channel high-side driver based on the VNI8200XP-32
| Part | Type | Utilized IC / Part | Secondary Attributes | Function | Primary Attributes | Supplied Contents | Contents |
|---|---|---|---|---|---|---|---|
STMicroelectronics STEVAL-IFP032V1 | Power Management | VNI8200XP-32 | On-Board LEDs | High Side Driver (Internal FET) | 8-Channel (Octal) | Board(s) | |
STMicroelectronics STEVAL-IFP022V1 | Power Management | VNI8200XP | On-Board LEDs | High Side Driver (Internal FET) | 8-Channel (Octal) | Board(s) | |
STMicroelectronics STEVAL-IFP022V1 | |||||||
STMicroelectronics STEVAL-IFP032V1 | |||||||
STMicroelectronics STEVAL-IFP032V1 |
Description
General part information
VNI8200 Series

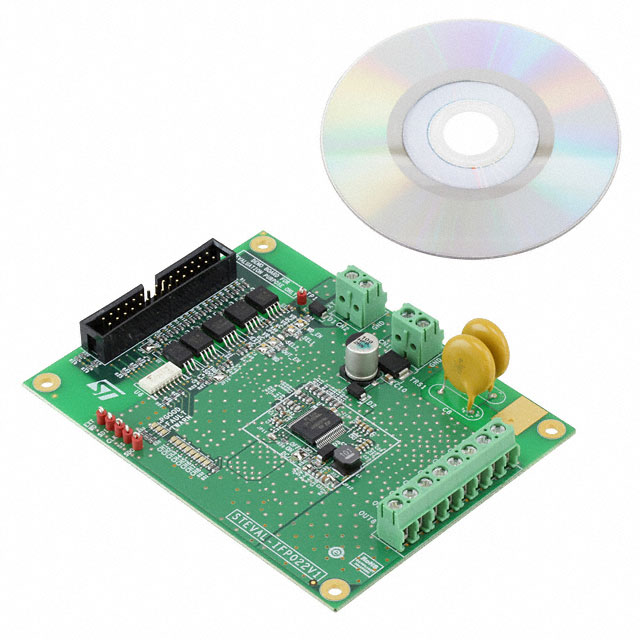

The STEVAL-IFP032V1 evaluation board, based on the VNI8200XP-32 high-side driver, is intended for device testing in terms of power management and digital interface.
In adherence with industrial standards, the board’s isolated interface between the IPS and host controller are implemented using high-speed opto-couplers for IPS driving, and low-speed opto-couplers to receive device status information. Connection is achieved through a 30-pin connector.
A GUI interface provides a user-friendly way to test VNI8200XP-32 device functionality, after connecting the STEVAL-IFP032V1 evaluation board to a PC via a communication board (part number STEVAL-PCC009V2).
