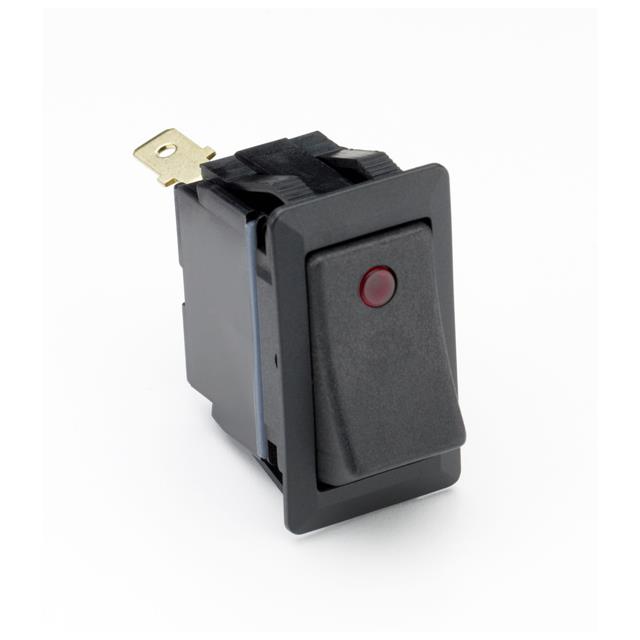

58327-01

Obsolete

Cole Hersee

SWITCH ROCKER SPST 25A 12V

Search across all available documentation for this part.

Obsolete

Cole Hersee

SWITCH ROCKER SPST 25A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	58327-01

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	25 A
Illumination Type, Color	Incandescent, Red
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP66
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

SWITCH ROCKER SPST 25A 12V

Part	Termination Style	Ingress Protection	Illumination Voltage (Nominal)	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - DC	Circuit	Current Rating (Amps)	Illumination Type, Color	Switch Function	Actuator Marking	Mounting Type	Actuator Type	Color - Actuator/Cap
Cole Hersee 58327-01	Quick Connect - 0.250" (6.3mm)	IP66	12 VDC	21.08 mm	36.83 mm	12 V	SPST	25 A	Incandescent, Red	On-Off	No Marking	Panel Mount, Snap-In	Concave (Curved) - Illuminated	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPST 25A (DC) Panel Mount, Snap-In

Technical documentation and resources

No documents available
