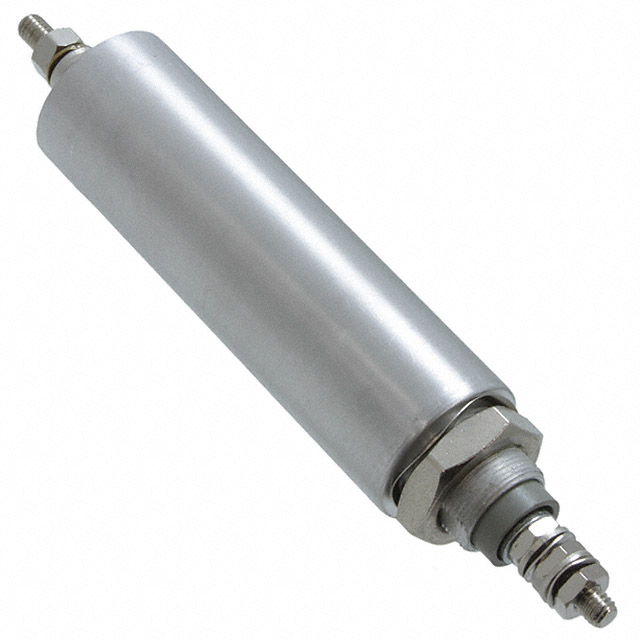

FN7611-63-M6S
ObsoleteTE Connectivity AMP Connectors
FILTER LC(PI) 186NH/0.015UF BOLT
FN7611-63-M6S
ObsoleteTE Connectivity AMP Connectors
FILTER LC(PI) 186NH/0.015UF BOLT
Description
General part information
FN7611-63-M6S
LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 186nH, C = 0.015µF 63 A Axial - Threaded Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | FN7611-63-M6S |
|---|---|
| Applications | Data Lines for Mobile Devices |
| Capacitance | 0.015 µF |
| Current | 63 A |
| ESD Protection | No |
| Filter Order | 3 |
| Inductance (Total) | 186 nH |
| Mounting Type | Bolt Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial - Threaded Terminals |
| Resistance - Channel (Ohms) | 0.00047 Ohm |
| Technology | LC (Pi) |
| Type | Low Pass |
| Voltage - Rated | 1000 V |
