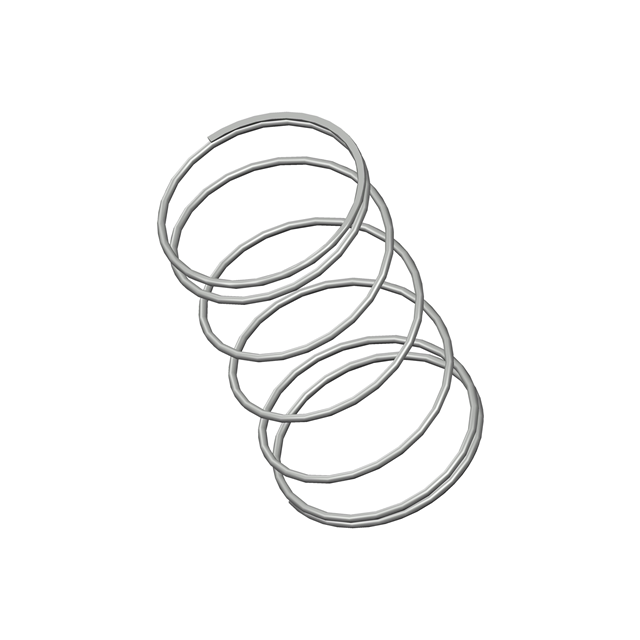

3006CS
ActiveCentury Spring Corp
COMP O=1.765,L= 3.13,W= .067
3006CS
ActiveCentury Spring Corp
COMP O=1.765,L= 3.13,W= .067
Description
General part information
3006CS
COMP O=1.765,L= 3.13,W= .067
Technical Specifications
Parameters and characteristics for this part
| Specification | 3006CS |
|---|---|
| Diameter - Inside | 1.631 in |
| Diameter - Outside | 1.765 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 3.13 in |
| Material | Spring Steel |
| Rate (lbs/in) | 1.2 lbs/in |
| Type | Compression |
| Wire Diameter | 0.067 in |
