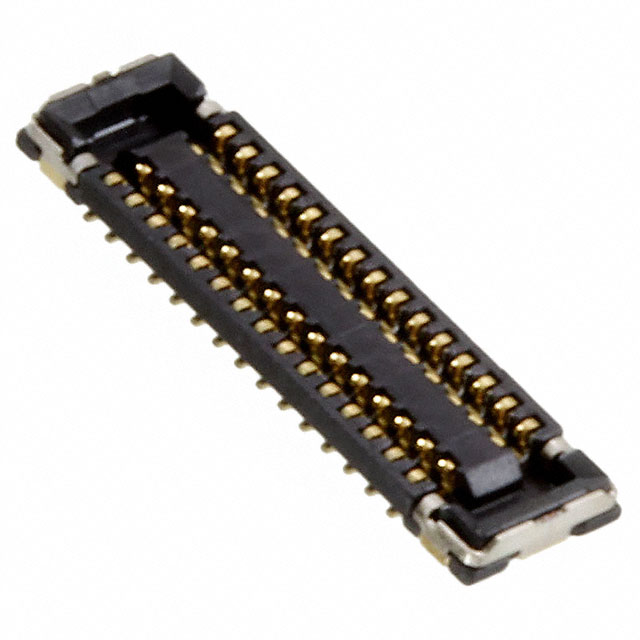

Specification	5046183010

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.024 in
Mated Stacking Height	0.6 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch	0.014 in

504618 Series

SlimStack Board-to-Board Receptacle, 0.35mm Pitch, SSB6 Standard Series, 0.60mm Mated Height, 2.00mm Mated Width, 24 Circuits

Part	Mounting Type	Height Above Board	Number of Rows	Pitch	Mated Stacking Height	Number of Positions	Contact Finish	Connector Type	Features
Molex 5046186412	Surface Mount	0.024 in	2	0.014 in	0.6 mm	64	Gold	Center Strip Contacts Receptacle	Pick and Place Solder Retention
Molex 5046183012	Surface Mount	0.024 in	2	0.014 in	0.6 mm	30	Gold	Center Strip Contacts Receptacle	Pick and Place Solder Retention
Molex 5046187012	Surface Mount	0.024 in	2	0.014 in	0.6 mm	70	Gold	Center Strip Contacts Receptacle	Pick and Place Solder Retention
Molex 5046181012	Surface Mount	0.024 in	2	0.014 in	0.6 mm	10	Gold	Center Strip Contacts Receptacle	Pick and Place Solder Retention
Molex 5046183410	Surface Mount	0.024 in	2	0.014 in	0.6 mm	34	Gold	Center Strip Contacts Receptacle	Solder Retention
Molex 5046185012	Surface Mount	0.024 in	2	0.014 in	0.6 mm	50	Gold	Center Strip Contacts Receptacle	Pick and Place Solder Retention
Molex 5046182412	Surface Mount	0.024 in	2	0.014 in	0.6 mm	24 pos	Gold	Center Strip Contacts Receptacle	Solder Retention
Molex 5046181010	Surface Mount	0.024 in	2	0.014 in	0.6 mm	10	Gold	Center Strip Contacts Receptacle	Solder Retention
Molex 5046182012	Surface Mount	0.024 in	2	0.014 in	0.6 mm	20	Gold	Center Strip Contacts Receptacle	Pick and Place Solder Retention
Molex 5046184012	Surface Mount	0.024 in	2	0.014 in	0.6 mm	40	Gold	Center Strip Contacts Receptacle	Pick and Place Solder Retention
