Technical Specifications
Parameters and characteristics for this part
| Specification | ZUSA-HT-4422 |
|---|---|
| Color | White |
| Features | Polyester Braid Reinforced, Food Safe |
| Inner Diameter | 0.748 in |
| Length | 25 ft |
| Material | Poly-Vinyl Chloride (PVC) |
| Operating Pressure | 100 PSI |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Outer Diameter | 1.024 in |
| Type | Tubing |
| Wall Thickness | 0.118 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 103.00 | <1d |
CAD
3D models and CAD resources for this part
Description
General part information

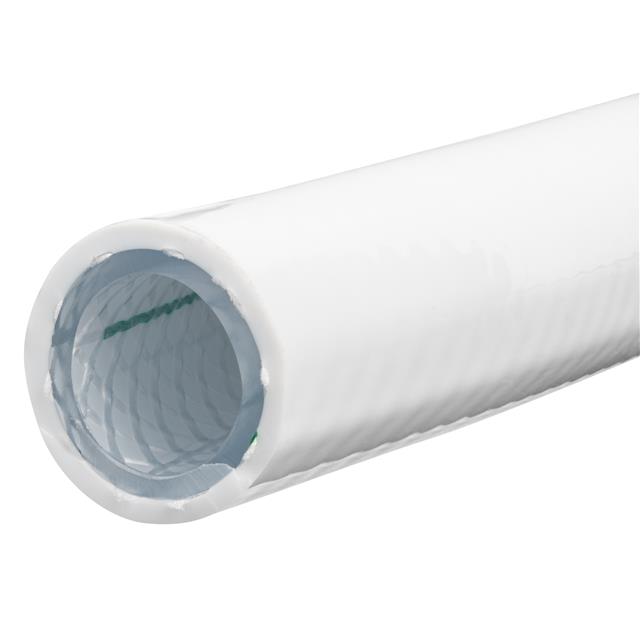

ZUSA-HT-4422
POLYESTER BRAID REINFORCED 3A &
Documents
Technical documentation and resources
No documents available
