PF2400 NA005

Active

ALPHA WIRE

SLEEVING 0.325" ID FBRGLASS 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.325" ID FBRGLASS 100'

Technical Specifications

Parameters and characteristics for this part

Specification	PF2400 NA005

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside [diameter]	0.325 in
Diameter - Inside [diameter]	8.26 mm
Diameter - Outside [diameter]	0.379 in
Diameter - Outside [diameter]	9.63 mm
Environment Protection	Corrosion Resistant
Length	100 ft
Length	30.48 m
Material	Fiberglass
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	648 °C
Operating Temperature [Min]	-60 °C
Type	Sleeving
Type Attributes	Braided
Wall Thickness	0.016 in
Wall Thickness	0.4 mm

SLEEVING 0.325" ID FBRGLASS 100'

Part	Environment Protection	Type Attributes	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type	Material	Color	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Wall Thickness	Wall Thickness	Material Flammability Rating	Abrasion Protection
ALPHA WIRE PF2400 NA005	Corrosion Resistant	Braided	100 ft	30.48 m	-60 °C	648 °C	0.325 in	8.26 mm	Sleeving	Fiberglass	Natural	0.379 in	9.63 mm	0.016 in	0.4 mm	UL VW-1	Abrasion Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

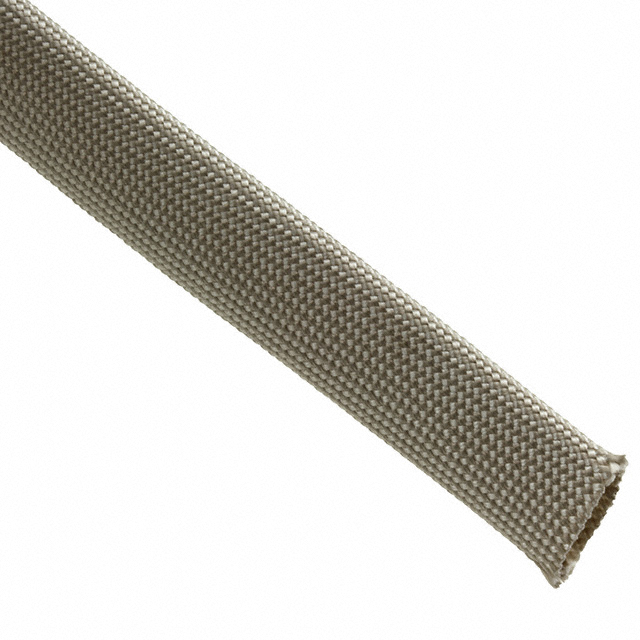

Natural Fiberglass Braided Sleeving 0.325" (8.26mm) 100' (30.48m)
