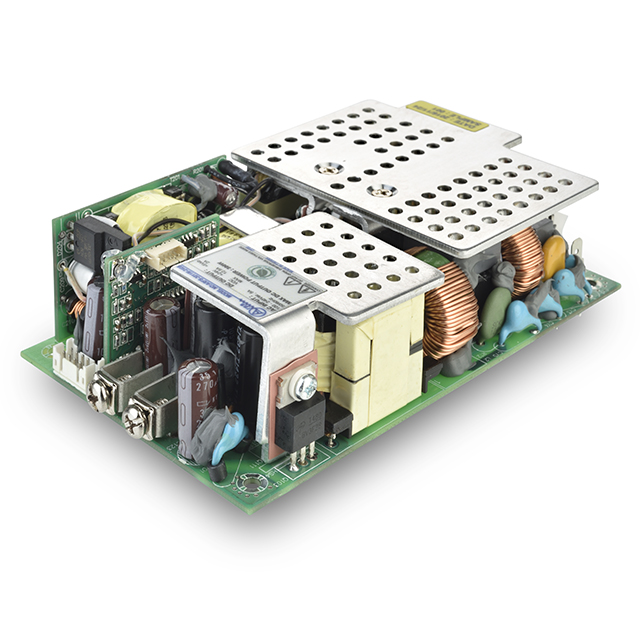

ARFS-3411M-2405

Active

Aras Power Technologies

AC/DC CONVERTER 24V 336W

Search across all available documentation for this part.

Active

Aras Power Technologies

AC/DC CONVERTER 24V 336W

Technical Specifications

Parameters and characteristics for this part

AC/DC CONVERTER 24V 336W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Voltage - Output 1	Current - Output 1	Approval Agency	Applications	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Number of Outputs	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Type
Aras Power Technologies ARFS-3411M-2405	90 VAC	264 VAC	Chassis Mount	24 V	14 A	CB, CE, cTUVus, UL	ITE (Commercial), Medical	90 %	127 mm	3 "	1.4 "	5 in	76.2 mm	35.6 mm	336 W	1	60601-1	70 °C	0 °C	Open Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 99.00

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input

Technical documentation and resources
